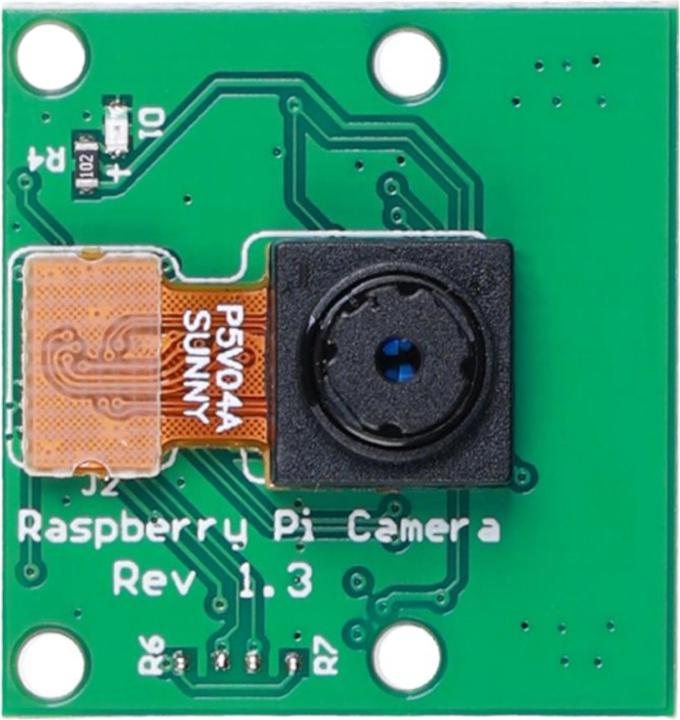

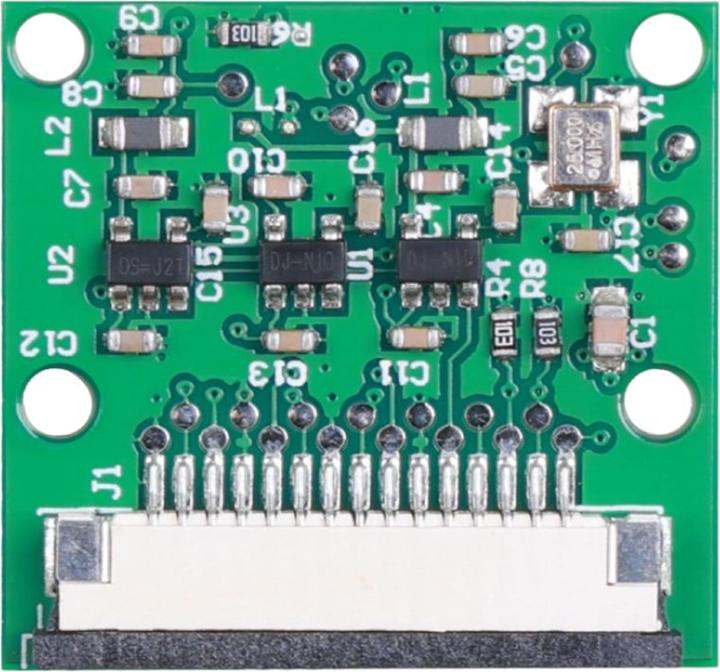

Seeed Studio OV5647 62 FOV camera for Raspberry Pi 3B+4B

Experience high-quality surveillance and wide-area imaging with the OV5647 camera module. This module has been specifically designed for the Raspberry Pi 3B and 4B, offering a wide field of view of 62 degrees thanks to its fisheye lens. With a resolution of 2592 x 1944 pixels and an adjustable focus of 3.4 mm, the camera is perfect for landscape photography and security monitoring. Mounting the camera is easy, as it features four screw holes for stable attachment. This versatile camera is ideal for use in large spaces and for detailed image capture.

Recommended Accessories:
Grove Vision AI Module V2

Features:
The camera utilizes a 5-megapixel OV5647 sensor for sharp images. With an active image size of 2592 x 1944 pixels, the camera provides high resolution. The fisheye lens allows for a wide field of view of 62 degrees for comprehensive images. The module supports Raspberry Pi 3B, 3B+, and 4. Thanks to the four screw holes on the module, the camera is easy to mount. The adjustable focal length of 3.4 mm allows for flexible focus settings.

Application Examples:
Monitoring large landscapes or gardens. Security surveillance in large rooms or halls. High-quality image capture for scientific projects. Live streaming of events or presentations. Extensive nature and wildlife photography.

Technical Specifications:
Manufacturer: Seeed Studio
Manufacturer SKU: 114110127
Sensor: OV5647
CMOS Size: 1/4 inch
Resolution: 5 Megapixels (2592 x 1944 pixels)
Video Resolution: 1080p@30fps, 720p@60fps
Field of View: 62 degrees
Pixel Size: 1.4 µm x 1.4 µm
Focal Length: 3.4 mm (adjustable)
Aperture: 2.8
Supported Hardware: Raspberry Pi 3B, 3B+, 4
Power Supply: 3.3 V (Pin 15)
Operating Temperature: -20°C to 70°C
Dimensions: 25 x 25 x 9 mm
Weight: 11g

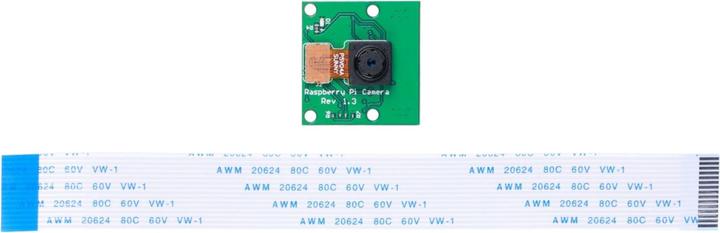

Delivery Contents:
1x OV5647 62 FOV camera for Raspberry Pi 3B+4B
1x 15-pin FFC connection cable.
