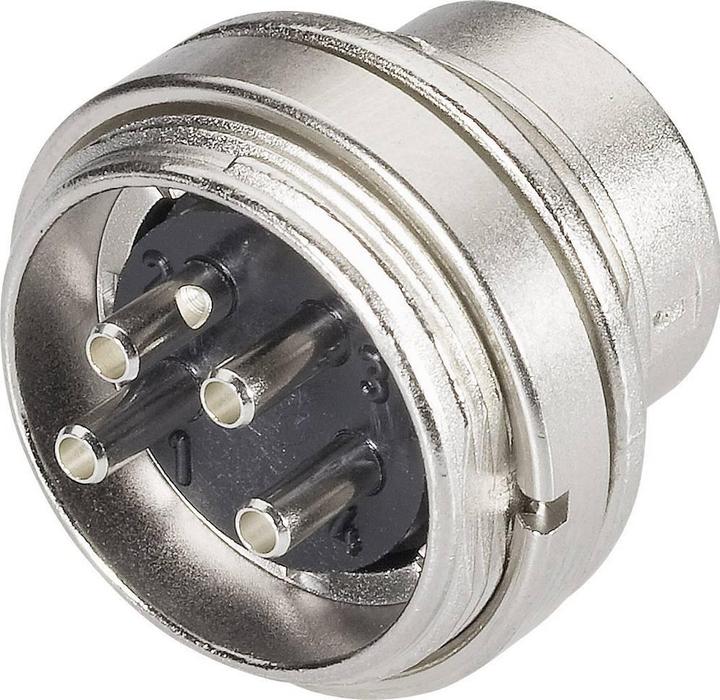

Schubiger Miniature round plug series

Minimum order 4
Ratings
Delivered Mon, 27.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

The miniature circular connector of the 680 series from Schubiger Möbel is a high-quality connector designed for various electronic applications. With a total pin count of 6, this connector provides a reliable connection and is ideal for use in environments where space and weight are critical. The design as a panel mount connector allows for easy integration into existing systems. The construction includes a screw locking mechanism and an internal strain relief, which ensures additional safety and stability. The EMC properties of the connector guarantee effective interference protection, making it an excellent choice for demanding applications. The miniature circular connector is suitable for temperatures ranging from -40 °C to 90 °C, making it versatile for various uses.

  • Screw locking mechanism for a secure connection
  • Internal strain relief to prevent cable breaks
  • Good EMC properties for interference protection
  • Temperature range of -40 °C to 90 °C for versatile applications.

Key specifications

Cable + connector type
Plug connectors
Plug type
DC connector

General information

Item number
8569482
Manufacturer
Schubiger
Category
Cables + Plugs
Manufacturer no.
09-0323-00-06
Release date
23.4.2018
Minimum order
4

Material

Material group
Metal
Material
Nickel

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
DC connector
Temperature
-40 - 90 °C
Max. temperature
90 °C
Min. temperature
-40 °C
mounting type
Panel mounting
Connectors Design
Plug, installation
Number of cores
6x

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 0.35

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 piece

30-day right of return
24 Months Warranty (Bring-in)
