Schubiger Miniature round plug series

Minimum order 2
Ratings
Delivered Fri, 1.5.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

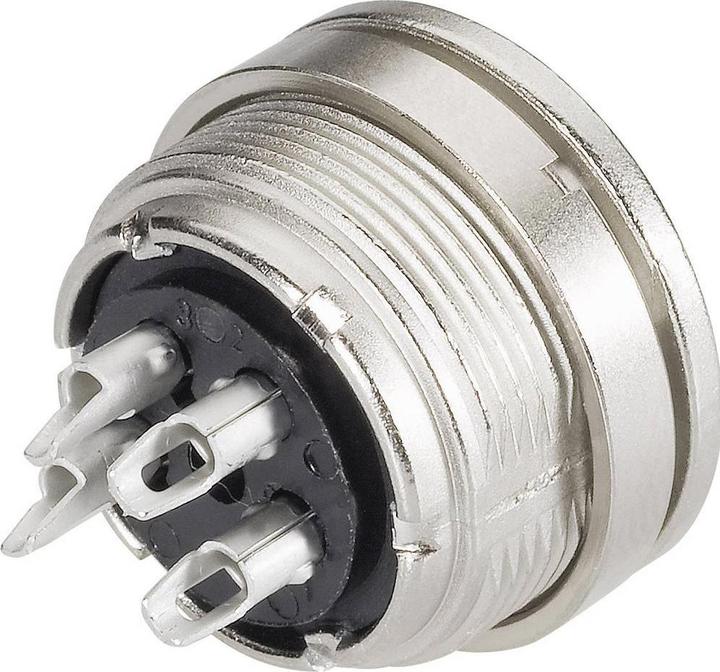

The miniature circular connector of the 680 series from Schubiger Möbel is a high-quality connector designed for various applications in electronics. With a total pin count of 12, this circular connector provides a reliable connection and is ideal for use in tight spaces. The socket design allows for easy installation, while the screw locking mechanism and internal strain relief ensure additional safety and stability. The EMC properties of the connector guarantee effective interference protection, making it an excellent choice for demanding electronic applications. The connector is made of robust nickel and withstands extreme temperatures ranging from -40 °C to 90 °C, demonstrating its versatility and durability.

  • Screw locking mechanism for a secure connection
  • Internal strain relief to prevent cable breaks
  • Good EMC properties for interference protection
  • Temperature resistant from -40 °C to 90 °C.

Key specifications

Cable + connector type
Plug connectors

General information

Item number
8569394
Manufacturer
Schubiger
Category
Cables + Plugs
Manufacturer no.
09-0332-00-12
Release date
23.4.2018
External links
Manufacturer's site (de)
Minimum order
2

Material

Material group
Metal
Material
Nickel

Cable + Connector Features

Cable + connector type
Plug connectors
Temperature
-40 - 90 °C
Max. temperature
90 °C
Min. temperature
-40 °C
mounting type
Panel mounting
Connectors Design
Socket, installation

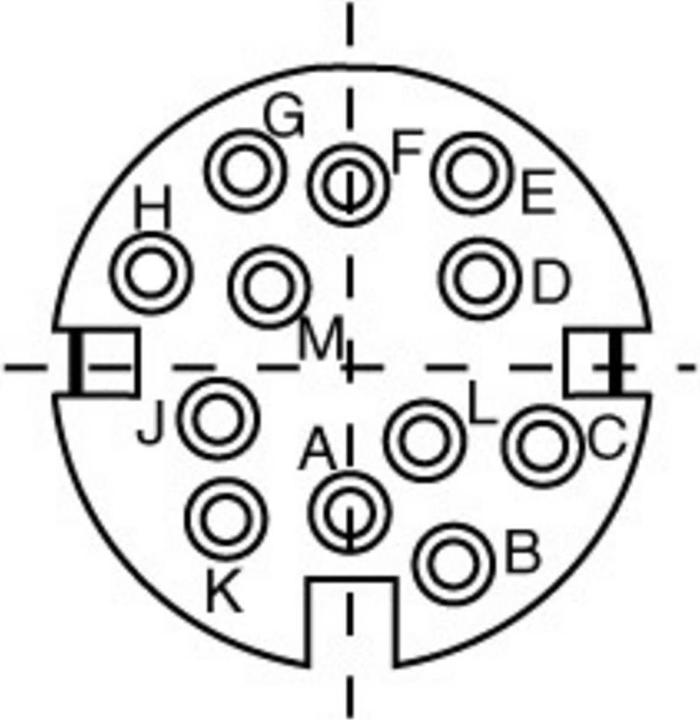

Number of cores
12x

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 0.82

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 piece

Product dimensions

Length
2 cm
Width
2 cm
Height
1.50 cm
Weight
10.20 g

30-day right of return
24 Months Warranty (Bring-in)
