Schneider XS2M12KP340D

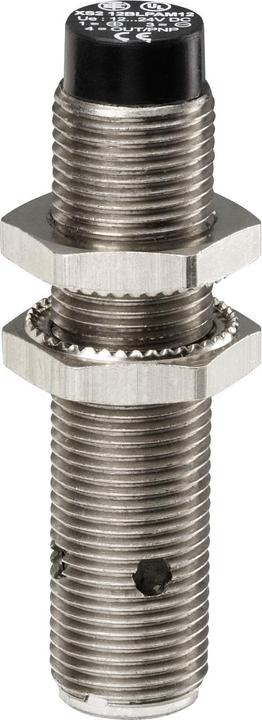

Telemechanique Sensors Inductive Proximity Switch XS2M12KP340D

Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch M12, sensing distance 4 mm
Type: XS2M12KP340D
Length of the sensor: 61 mm
Diameter of the sensor: 12 mm
Mechanical installation condition for sensor: non-flush
Switching distance: 4 mm
Suitable for safety functions: no
Switch function type: programmable/configurable
Output type: PNP/NPN
Electrical connection type: M12 connector
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Actuation type: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..24 V
Rated control supply voltage Us at DC: 12..24 V
Voltage type: AC/DC
Switching frequency: 5000 Hz
With monitoring function for downstream devices: no
Material of the housing: metal
Pressure-resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Immunity to magnetic fields: immune to static magnetic fields

Telemechanique Sensors Inductive Proximity Switch XS2M12KP340D: additional details
XS2-Inductive proximity switch M12 cylindrical format, length 66 mm, brass housing, switching distance 4 mm, 12-24 V DC, M12.
