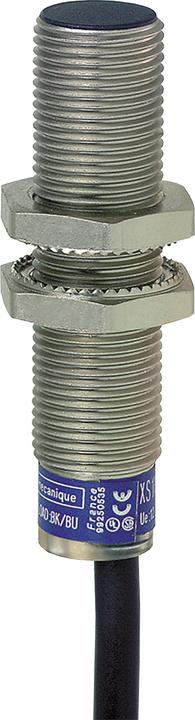

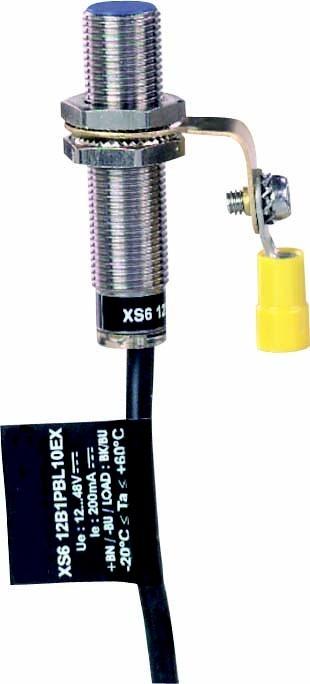

Schneider Electric XS6-Indu. Closer. M12, L50mm, XS612B1PAL10EX

Telemechanique Sensors Inductive Proximity Switch XS612B1PAL10EX

Manufacturer: Telemechanique Sensors
Description: Inductive proximity switch M12, Sn 4mm
Type: XS612B1PAL10EX
Sensor length: 53 mm
Sensor diameter: 12 mm
Mechanical installation condition for sensor: flush
Switching distance: 4 mm
Suitable for safety functions: no
Switching function type: normally closed
Output type: PNP/PNP
Electrical connection type: radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Actuation type: metallic target
Interface type: none
Interface type for safety-related communication: none
Housing design: cylinder, threaded
Housing coating: nickel-plated
Cascadable: no
SIL according to IEC 61508: none
Performance Level according to EN ISO 13849-1: none
Max. output current at safe output: 200 mA
Supply voltage: 12..48 V
Rated control supply voltage Us at DC: 12..48 V
Voltage type: AC/DC
Switching frequency: 2500 Hz
With monitoring function for downstream devices: no
Housing material: metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: other
Interference immunity against magnetic fields: immune to magnetic static fields

Telemechanique Sensors Inductive Proximity Switch XS612B1PAL10EX: additional details
XS6-Inductive proximity switch in cylindrical design M12, length 50 mm, brass, switching distance Sn 4 mm, power supply 12-48 V DC, 10 m connection cable, ATEX version.
