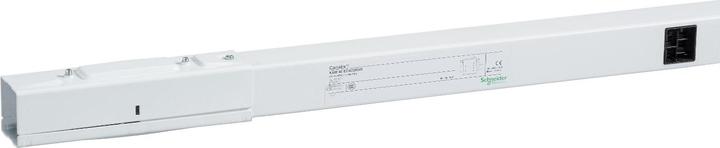

Schneider Electric SE KBB25ED4303TW Rail box 3m

This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and socket distribution. The rated operating current is 25 A at 35 °C. The rated operating voltage ranges from 230 VAC to 400 VAC at 50/60 Hz. This straight length consists of 3 branches, which are mounted at a maximum distance of one meter from the main circuit (front). It accommodates 1 circuit with 3L+N+PE polarity. This feed unit comes with an optional remote control circuit of 2 wires and is capable of transmitting and distributing the DALI protocol for light management. It offers an IP55 protection rating according to IEC 60529, ensuring protection of the cable trunking against splashes and dust. It provides IK06 protection according to IEC 62262 against external mechanical impacts. The length is 3 m, and the cross-section is 46 mm x 46 mm. Sold in lots of 6 units. It is made of white painted steel sheet RAL 9003. Canalis KBB is compliant with IEC/EN 61439-6. It is non-flame propagating according to the recommendations of IEC 60332-3. All insulating and plastic materials are halogen-free and have increased fire resistance (IEC 60695-2).
