Schneider Electric Proximity switch inductive XS106B3PAL2

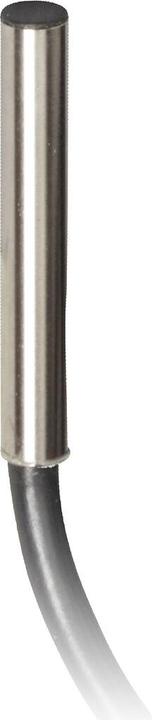

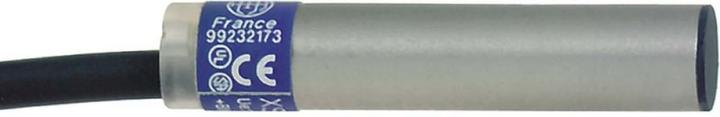

TE Sensors Proximity switch inductive XS106B3PAL2 Manufacturer :TE Sensors Designation :Proximity switch inductive D6 PNP NO flush 2M Type :XS106B3PAL2 Length of sensor :33 mm Diameter of sensor :6.5 mm Mechanical installation condition for sensor :flush Switching distance :2.5 mm Suitable for safety functions :no Version of switching function :N/O contact Version of switching output :PNP/PNP Version of electrical connection :cable radial Number of semiconductor outputs with signalling function :1 Type of actuation :metallic target Version of interface :without Design of the interface for safety-related communication :without Enclosure design :Cylinder smooth Coating of enclosure :nickel-plated Cascadable :no SIL according to IEC 61508 :without Performance level according to EN ISO 13849-1 :without Max. output current at the safe output :200 mA Output current at safe output :200 mA Supply voltage :12..24 V Rated control supply voltage Us at DC :12...24 V Voltage type :AC/DC Switching frequency :2500 Hz With monitoring function of downstream devices :no Material of enclosure :Metal Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :none Interference resistance to magnetic fields :interference resistant to magnetic direct and alternating fields TE Sensors Proximity switch inductive XS106B3PAL2: more details OsiSense XS ? Inductive proximity switches with increased switching distance, round design. XS1 inductive proximity switch. Dimensions DM 6.5 x 33 mm, connection cable 2 m, output NO, conductor 3-L, DC, switching distance_mm 2.5, protection class IP 65, IP 67. Metal housing with 2 m connection cable or M8 or M12 plug (or M8 plug for version DM 6.5 and DM 8 mm). Flush mounting. Operating voltage Ub 10-36 V DC, output 3-wire technology, PNP. Sensors have E2 approval for mobile applications. , EAN: 3389119035996.
