Product details
Schneider Electric Micro-perforated Mounting Rail. NSYMF43
Manufacturer: Schneider Electric
Description: Micro-perforated mounting rail 350x250
Type: NSYMF43
Height: 350 mm
Width: 250 mm
Material: Steel
Surface Protection: Galvanized
Perforation: Yes

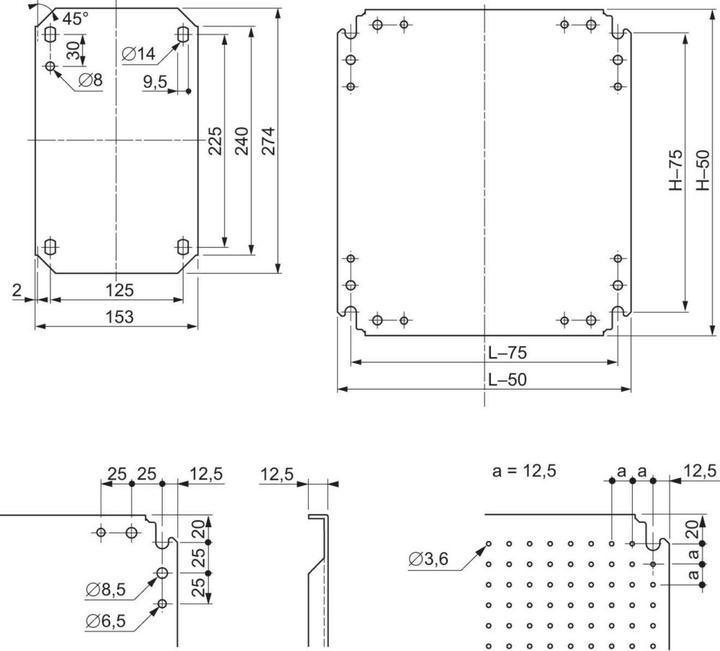

Micro-perforated mounting rail for Spacial CRN, S3D, S3X, PLM. Suitable for enclosures H300 x B400 mm. Features holes with a diameter of 3.6 mm spaced 12.5 mm apart. Provides universal mounting access. Can be mounted with the stepped rail or directly attached to the back plates with M8 screws. Permissible load of 60 kg. Made from galvanized steel. Reversible dimensions allow installation in an enclosure with reversed dimensions.
