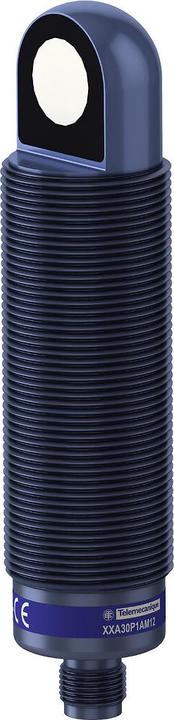

Schneider Electric M30 ultrasonic sensor angledPlastic housing SN 1M 4-20mA M12
Product details
Schneider Electric Ultrasonic sensor XXA30P1AM12 Manufacturer :Schneider Electric Designation :Ultrasonic sensor SN=1M, 4-20mA, M12 Type :XXA30P1AM12 Version of the analogue output :4 mA ... 20 mA Electrical connection version :M12 connector Blind zone :155 mm Sensor width :30 mm Sensor height :30 mm Sensor length :74.7 mm Sensor diameter :30 mm Adjustment method :other Measuring range Length :155..1000 mm Protection class (IP) :IP67 Ambient temperature :-25...70 °C Supply voltage :12..24 V Relative repeatability :0.1 % Voltage type :DC Synchronisation possible :yes Material of the active surface of the sensor :other Material of the housing :other Schneider Electric ultrasonic sensor XXA30P1AM12: Further details Ultrasonic sensor with 30 mm housing diameter. With 90° angled sensor head in plastic design. Connection via M12 plug connection, range 1m. Analogue output 4-20 mA. , EAN: 3389119644624.
