Rs Pro RJ45 Metal C3 Panel Jack Lock/Screw

Gender: Female
Number of Ports: 1
Connection Type: RJ45
Shielding Type: Shielded
IP Class: IP68
Length: 29.1 mm
Width: 25.4 mm
Depth: 42.1 mm
Series: GTC Sealed
Contact Material: Copper Alloy
Contact Plating: Gold

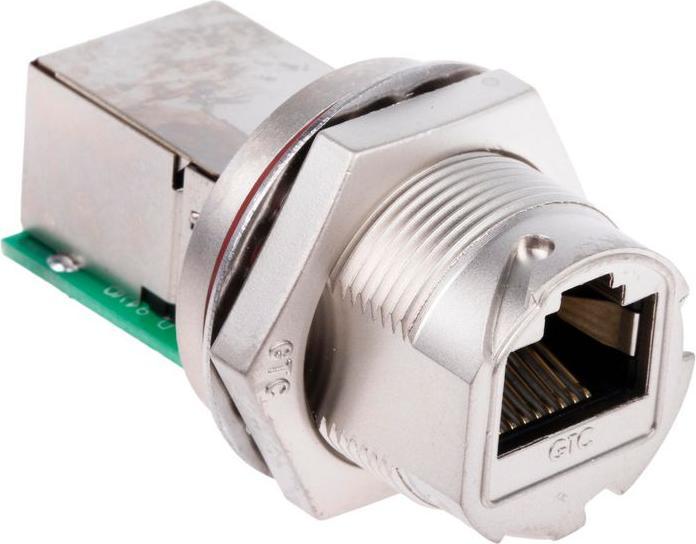

Waterproof RS Pro Metal RJ45 Panel Jacks. A series of high-quality IP68 metal panel jacks from the trusted RS Pro brand. The robust shielded screw connectors are secured by a 13/16-28 UN thread and have a recommended panel thickness of 0.8 mm to 8.0 mm. The fully sealed connectors feature a nickel-plated zinc alloy housing and include a red silicone O-ring. Available in standard panel mount and coupling versions. All models are highly reliable and of excellent quality.

Features and Benefits:

• Wide temperature range from -40 °C to +105 °C
• Protection class IP68
• Robust construction

Applications:

• Wireless outdoor access points
• Outdoor LED and display lighting
• Marine
• Automotive
• Military.
