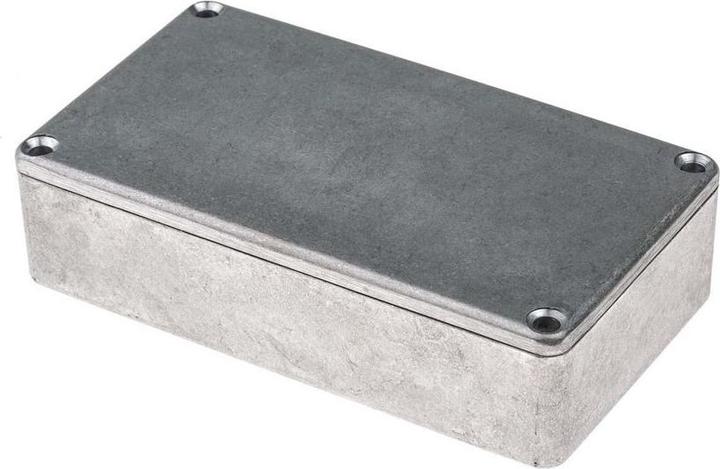

Rs Pro Enclosure, high temperature 115x65x30mm

Housing material: Die-cast aluminium
External dimensions: 114.5 x 63.6 x 30.3 mm
Length outside: 114.5 mm
Width outside: 63.6 mm
External height: 30.3 mm
IP protection: IP66
Color: Natural
Lid color: Natural
With flange: No
Shielded: Yes

EMI/RFI - IP66 shielded die-cast aluminum enclosure. RS Pro's IP66 shielded die-cast aluminum enclosures are made from a high-quality aluminum alloy with a natural finish and no external coating. The enclosures can withstand temperatures up to 250 °C without affecting the aluminum or the enclosure construction. Different sizes and wall thicknesses are available.

Characteristics and advantages:

• EMI/HF shielding
• Aluminium die-cast alloy ADC 12 (LM24 to BS1490)
• High-quality aluminum
• The cover is lipped to ensure EMI/RFI shielding
• Shielding is better than 40 dB at 10 MHz and 76 dB at 100 kHz
• Taper of 1.5° per side cover to the floor
• Gasket included in delivery
• High heat resistance
• Different sizes and wall thicknesses available

Assembly:

• Guides for PCB mounting
• Vertical guides for PCB mounting
• Guides are on the inside of the housing

Housing/lid design:

• Untreated aluminum
• Smooth
• No external coating
• If you want to paint, use powder paint
• Gasket included in delivery

Protection class IP66:
Protection class IP66 offers protection against dust and moisture. Self-adhesive seal. Neoprene. Cover thickness is 3 mm including gasket. Temperature range for the seal is from -20 °C to +80 °C.

Fixing the cover to the base:
The lid is provided with a lip to ensure a tight fit against the base. Taper of 1.5° per side cover to the floor. Tapped holes for a good fit. Mounting holes outside the interior of the housing. Countersunk stainless steel screws M3.5 x 12 mm Supadrive secure the lid. Recommended tightening torque is 5.6 kgf.

Temperature resistance:
Up to 250 °C with no impairment of material or structure.
