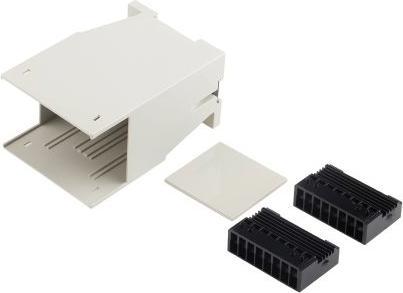

Rs Pro DIN rail mount terminal box,110x75x55mm

Dimensions: 75 x 55 x 110 mm
Housing material: Polycarbonate
DIN rail type: Top hat profile
Type of enclosure: DIN rail
Length: 75 mm
Width: 55 mm
Height: 110 mm
Maximum connection points: 16
Color: Gray
Operating temperature minimum: -40°C
Operating temperature maximum: +110°C
Internal mounting type: PCB mounting

This DIN rail mounting enclosure is constructed of fully insulated polycarbonate conforming to UL94V-2. Preformed pins allow easy connection from PCB to terminals. Devices can be fully assembled prior to placement in the enclosure. Captive self-locking terminal screws provide high vibration resistance. The front panel is easily removable and can be drilled or adapted for external components such as indicators or switches. Integrated guide rails accommodate PCBs in multiple positions. The front panel is removable.
