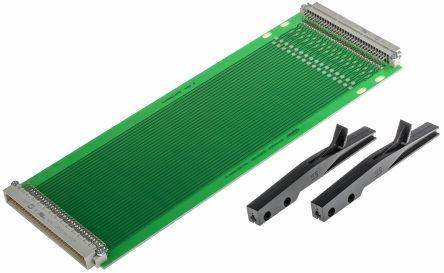

Rs Pro DIN 64-96 way 3U extender card assembly

Type: PCB Extension
Connection: DIN 41612
Number of Contacts: 64, 96
Board Material: Epoxy Glass Fiber Laminate
Single / Double Sided: 2
Dimensions: 281.6 x 100 x 1.6 mm
Copper Thickness: 35 µm
FR Material Quality: FR4
Length: 281.6 mm
Material Thickness: 1.6 mm
Width: 100 mm

Extensions for Euro boards. Extension series for testing Euro boards with single or double height, a depth of 160 or 220 mm, with connectors of type B or C according to DIN 41612. The ejection mechanism at the front supports the board being tested. The circuits of the board are thus completely free from the chassis, making their examination and verification easier. To simplify the attachment of oscilloscope probes, the extension boards can be equipped with connection terminals (single boards come with 20 connection terminals, double boards with 40). This option is not available for extensions with 96/96 contacts.
