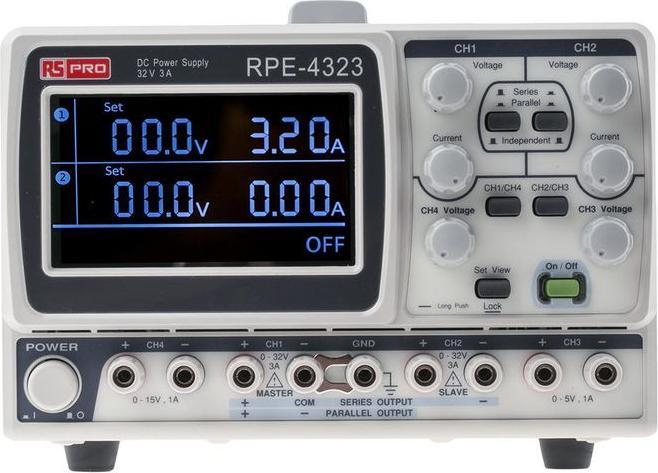

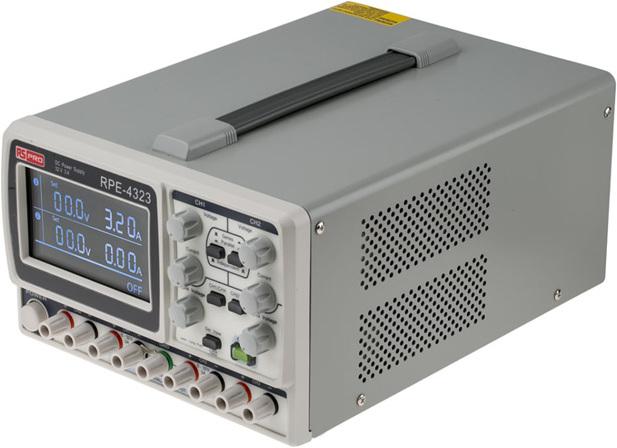

Rs Pro 4 channels,212W linear DC power supply

User manual (CD), power cord, test leads. RS Pro RPE series linear DC power supplies are a line of innovative, economical, linear DC power supplies. They offer output power from 192 to 217 watts, depending on model selection. Features of the series include high resolution, low noise, reliability, and a compact design. A unique integrated digital front panel control provides features such as Set View and key lock. The key lock function protects devices under test (DUTs) by preventing others from changing voltage and current parameters. An output light helps users clearly read the operating status of the power supply. In addition to independent output channels, RS Pro's RPE series has an automatic tracking series and parallel switching function. The series and parallel circuits allow the power supplies to output 32 V/6 A (parallel circuit) and 64 V/3 A (series circuit). The CH1 and CH2 of the RPE-2323, RPE-3323, and RPE-4323 models operate the series and parallel circuit functions. The output ON/OFF function protects DUTs from damage that may be caused by the pre-output when connecting a DUT to a power supply. Operators must preset voltage and current parameters and ensure that all connections are correct. Then, they can use manual control on the front panel to activate the output ON/OFF function.

Features include:

• 1/2/3/4 independent isolated outputs (depending on model selection)
• 4.3-inch LCD display
• Setting and readout resolution of 100 mV/10 mA (for higher resolution 10 mV/1 mA, refer to the setting procedure in the user manual)
• Output ON/OFF
• Analog control (remote I/O) for output ON/OFF
• Set View function for checking an original voltage/current setting for output ON
• Key function
• Tracking series and parallel operation
• Intelligent fan results in low noise

Dimensions: 210 x 155 x 306 mm
Weight: approx. 7 kg.
