RF-Elements UltraHorn TP 5-24 - 24 dBi - 11° - 11° - horn antenna - IP55 - 160 km/h

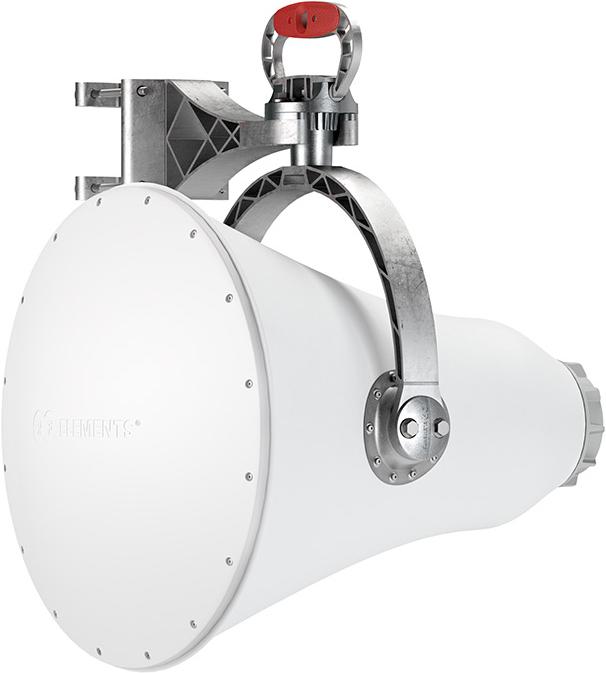

RF Elements UH-TP-5-24 - UltraHorn TP Antenna

The UltraHorn TP antennas are highly directional, scalar horn antennas with high gain. They provide ultra-strong noise suppression, a lossless connection to the radio, and a symmetrical beam without side lobes. The absence of side lobes allows UltraHorn TP antennas to reject noise in high noise level environments with unprecedented performance. There is no need to spend more money on radomes or enclosures. No additional costs for extra shielding are incurred. Simply purchase a suitable TwistPort adapter to connect and deploy your radio.

All UltraHorn TP antennas are equipped with a unique, patented quick-release connector, the TwistPort. TwistPort connections are practically lossless and represent a revolutionary advancement in the scalability and user-friendliness of wireless systems. UltraHorn TP antennas support a wide range of third-party radios with our TwistPort adapters.

• Antenna connection: TwistPort - quick-release connector
• Antenna type: Horn
• Materials: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
• Protection class: IP55
• Mast diameter: 30-80 mm
• Temperature: -30°C to +55°C
• Wind resistance: 160 km/h
• Wind load: 210 N at 160 km/h
• Mechanical tilt: +/-25°
• Weight: 8.2 kg

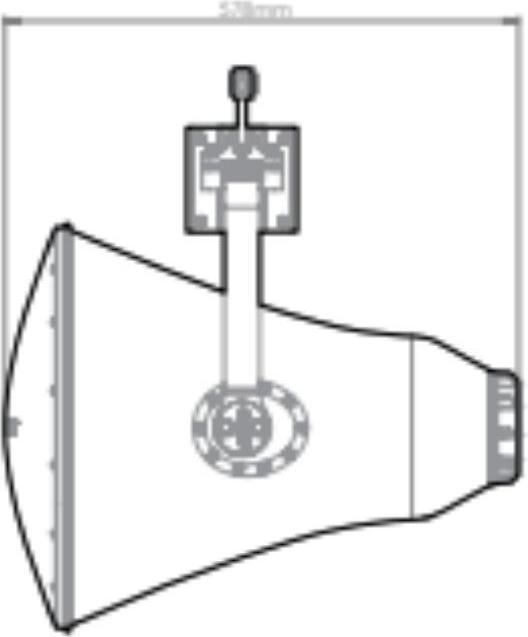

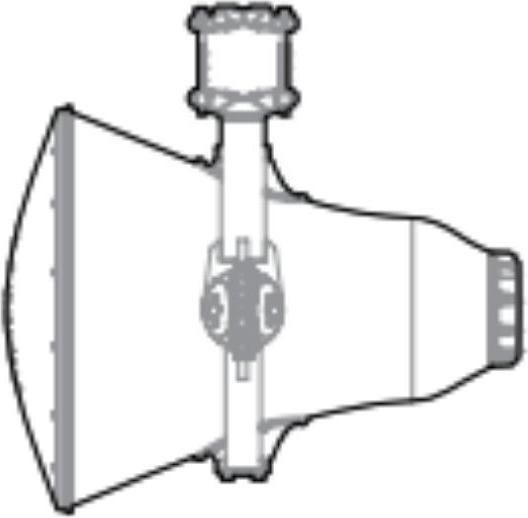

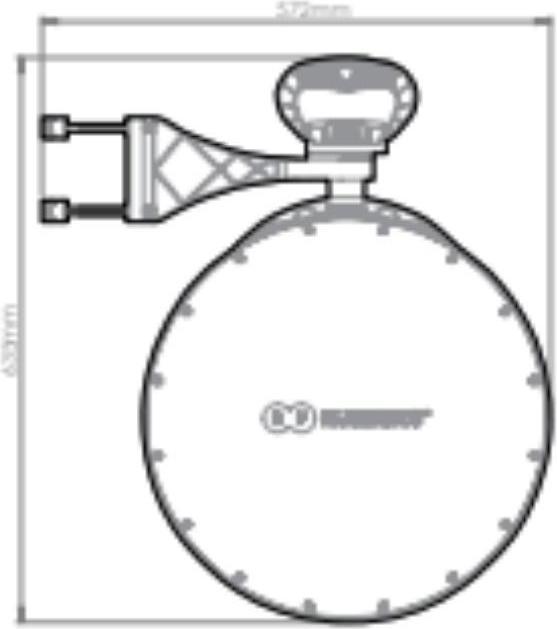

• Dimensions: 55.0 x 55.0 x 66.6 cm.
