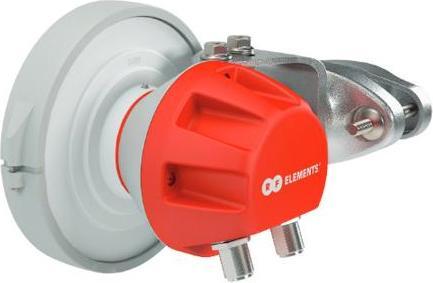

RF-Elements SH-CC-5-80 - Symmetrical Horn Antenna, Carrier Class

RF Elements SH-CC-5-80 - Symmetrical Horn Antenna, Carrier Class

The SH-CC series offers unique RF performance in a very compact
package. Scalar horn antennas have symmetrical beams with identical
patterns in the vertical and horizontal plain. Extremely small side
lobes secure greatly decreased interference.

SH-CC antennas are ideal for covering areas with close in clients where null zone issues occur. High density AP clusters and radio co-location is now practical due to very unique RF radiation patterns and compact size.

SH-CC 5-80 antenna is equipped with N-female connectors.

Technical Data

• Radio connection: 2x N female bulkhead connector

• Antenna type: Horn

• Materials: UV resistant polycarbonate, polypropylene, aluminium, zinc, stainless steel

• Enviromental: IP55

• Pole mounting diameter: 15-86 mm

• Temperature: -30°C to +55°C (-22°F to +131°F)

• Wind survival: 160 km/hour

• Mechanical tilt: +/- 25°

• Weight: 1.8 kg /4 lbs – single unit, 2.4 Kg /5.3 lbs – single unit incl. package

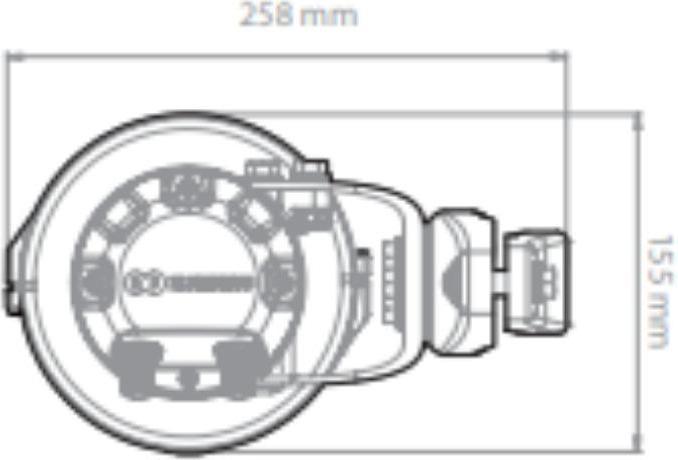

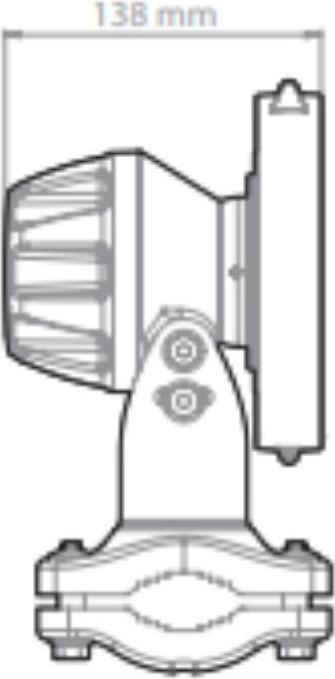

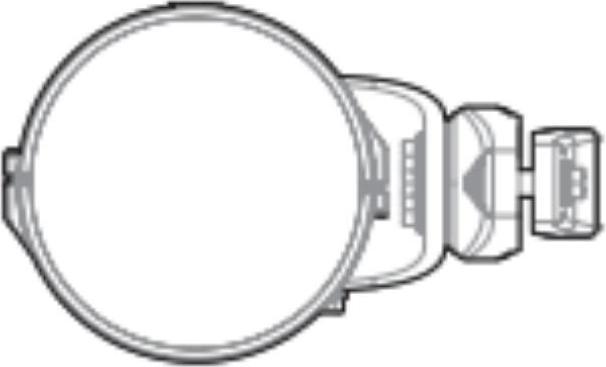

• Dimensions: Retail box: 32 x 20 x 22 cm

PERFORMANCE

• Frequency range: 5180 - 6100 MHz

• Gain: 10.4 dBi

• Azimuth/elevation beam width -3 dB: H 60° / V 60°

• Azimuth/elevation beam width -6 dB: H 81° / V 81°

• Front-to-back ratio: 37 dB

• VSWR max.: 1.8

• Polarization: Dual linear H + V

• Impedance: 50 Ohm.
