RF-Elements AS-2-17 - Array Sector Antenna 2.4 GHz, 17 dBi

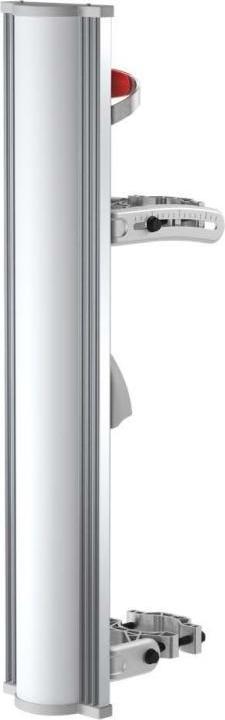

AS-2-17 - Array Sector Antenna 2.4 GHz, 17 dBi

RF elements® Array Sector Antennas are optimized for high performance in unlicensed frequency bands. They provide excellent RF performance, co-location capability, easy installation, and cost efficiency.

The side lobes of the Array Sector Antennas are suppressed with BackShield, RF elements' patented frequency-selective surface that dampens side lobes and is integrated into the antenna body.

The gain of the Array Sector 2-17 is stable for both horizontal and vertical polarization, offering reliable performance regardless of the channel used. The antenna is lightweight and made from high-quality, corrosion-resistant materials to ensure a long lifespan.

Physical

Antenna connection: 2x RP-SMA on integrated semi-flex pigtails
Antenna type: Patch Array Sector
Materials: UV-resistant ABS plastic, aluminum alloy, stainless steel
Environmental conditions: IP55
Temperature: -35°C to +60°C
Wind resistance: 160 km/h
Wind load: 217/65 N - Front/Side at 160 km/h
Effective projected area: 1782/533 cm² - Front/Side
Electrical tilt angle: 0°
Mast diameter: 40-80 mm, preferably 80 mm
Weight: 3.9 kg
Packaging dimensions: 834 x 167 x 130 mm

Performance

Frequency range: 2400 - 2484 MHz
Gain: 17 dBi
Polarization: Dual linear H + V
Azimuth radiation pattern -3 dB: H 71°/V 78°
Elevation beamwidth -3 dB: H 8°/V 8°
Azimuth beamwidth -6 dB: H 115°/V 109°
Elevation beamwidth -6 dB: H 10°/V 10°
Front-to-back ratio (min.): 21 dB
Radiation efficiency: 87 %
Cross-polarization isolation: H 30 dB/V 30 dB
Impedance: 50 Ohm
Max VSWR: 1.6
Typical VSWR: 1.4
Isolation between ports: 30...
