RAK Wireless WisBlock Unify Solar Enclosure IP65 100x75x38

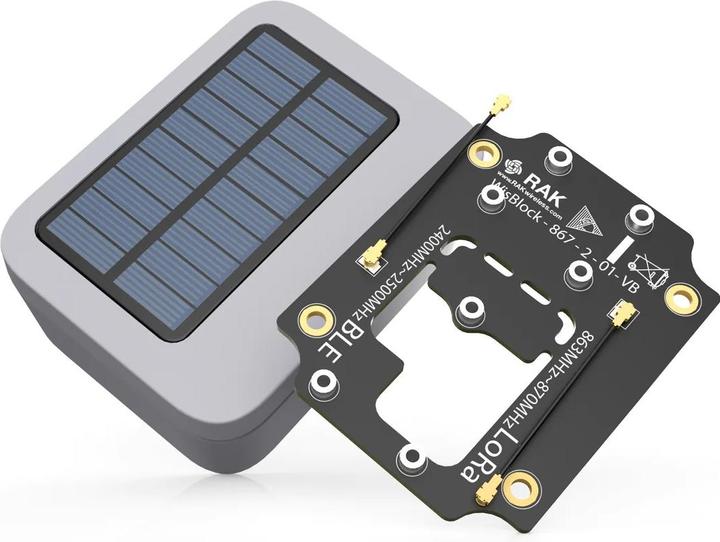

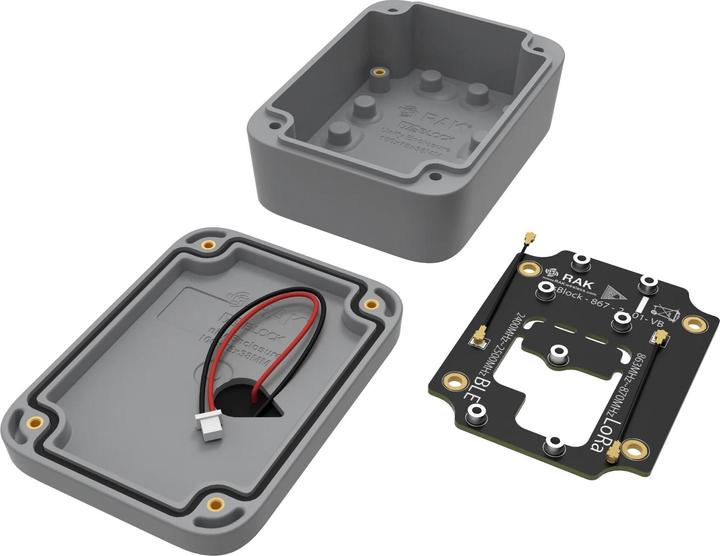

The Unify enclosure with solar and antenna plate is an IP65-rated modular outdoor enclosure designed specifically for WisBlock base boards and modules. It offers spacious interiors and versatile mounting options to adapt to different applications. The enclosure features an integrated solar panel in the lid that can be connected to the WisBlock base boards via a suitable cable, allowing it to charge a battery as needed and operate independently of an external power source. Installation of your IoT solution is simplified by the interchangeable mounting accessories that attach to the mounting points on the back of the enclosure. The enclosure provides sufficient space for certain WisBlock base boards as well as a flat LiPo battery that can be mounted under an internal mounting plate. In the standard configuration, the available space under the mounting plate is approximately 55 x 34 x 6 mm, minus the enclosure elements.

Supported WisBlock base boards:

• RAK19003
• RAK19007
• RAK5005-O

Technical details:

• Manufacturer: RAK Wireless
• Manufacturer SKU: 910396
• Enclosure:
• Material: ABS UL94V-0
• Internal space: approx. 86 x 61 x 29 mm (may vary depending on application)
• Overall wall thickness: 4.5 mm
• Gasket: Waterproof silicone
• Threaded inserts: Brass threaded inserts throughout
• Dimensions: 100 x 75 x 38 mm (including lid)
• Solar panel:
• Open circuit voltage: 6.1 V (±10%)
• Short circuit current: 95 mA (±5%)
• Voltage at rated power: 5 V (±10%)
• Current at rated power: 90 mA (±5%)
• Efficiency of the cell: 18%
• Temperature range: -20 to 65 °C
• Humidity range: 45 to 85%
• Connection: 1 x ZH1.5-2P (red: positive pole, black: negative pole)
• Size: 80 x 45 x 1.7 mm (±0.2 mm)
• Antennas: 1 x LoRa/LoRaWAN, 1 x BLE
• Ratings: IP65
• Weight: 202 g

Scope of delivery:

• 1 x WisBlock Unify Solar Enclosure IP65 100 x 75 x 38
• 1 x Unify WisBlock mounting board with integrated 863 - 870 MHz LoRa antenna and BLE antenna
• 2 x antenna connection cable.
