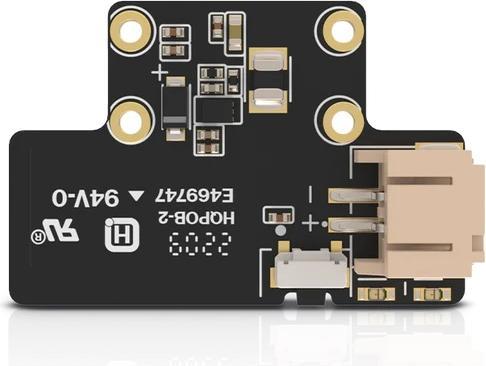

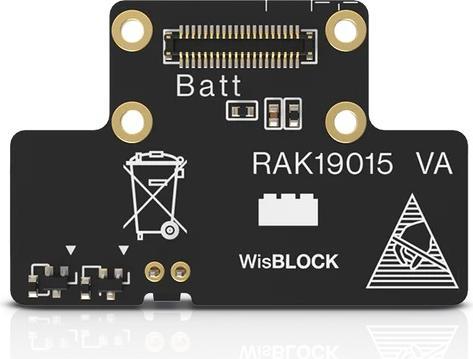

RAK Wireless WisBlock RAK19015 Battery Power Board

The RAK19015 WisBlock Battery Power Slot Module is a power board that features a battery connection, a reset button, and two status LEDs. It is designed to be used with a WisBlock base board with a power slot. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock base board. Unlike traditional connectors, the modules are secured to the base board with screws, providing a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for applications in professional or hobbyist prototyping.

Features:

• Designed for applications with pure battery operation
• Highly efficient switching regulator
• Optimized for low-power devices

Technical Details:

• Manufacturer: RAK Wireless
• Model: RAK19015
• Manufacturer SKU: 100090
• WisBlock Slots: 1x Power Slot

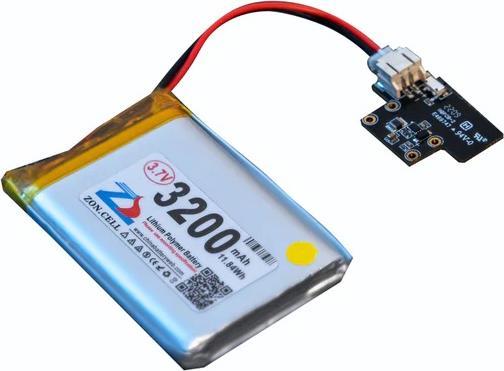

• Pin Connections: 1x 2-pin battery interface
• LEDs: 2x programmable LEDs
• Button: Reset button
• Battery Voltage: -0.3-4.3V
• Operating Temperature Range: -35°C to 75°C (optimal: 25°C)
• Storage Temperature Range: -40°C to 80°C (optimal: 25°C)
• Dimensions: 20 x 30 x 7mm
• Weight: 3g

Delivery Contents:

• 1x WisBlock RAK19015 Battery Power Board.
