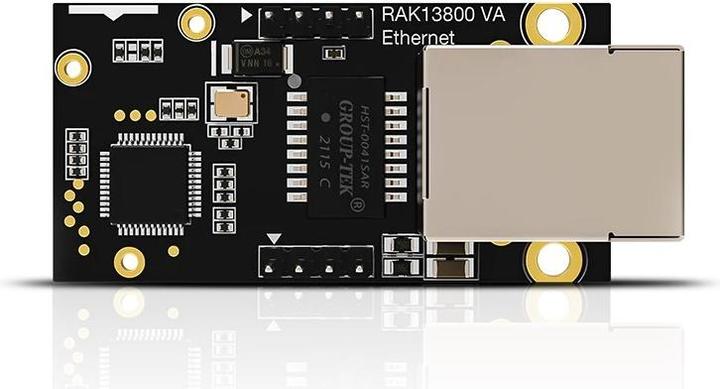

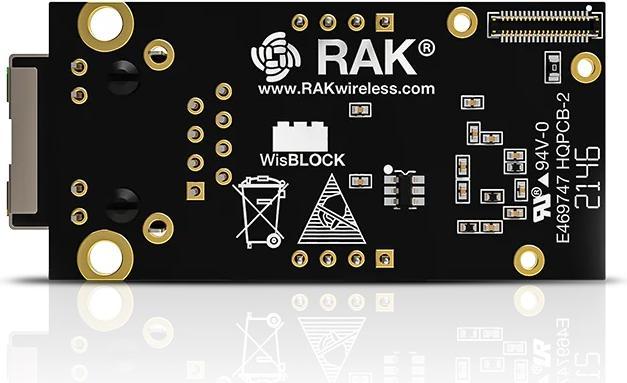

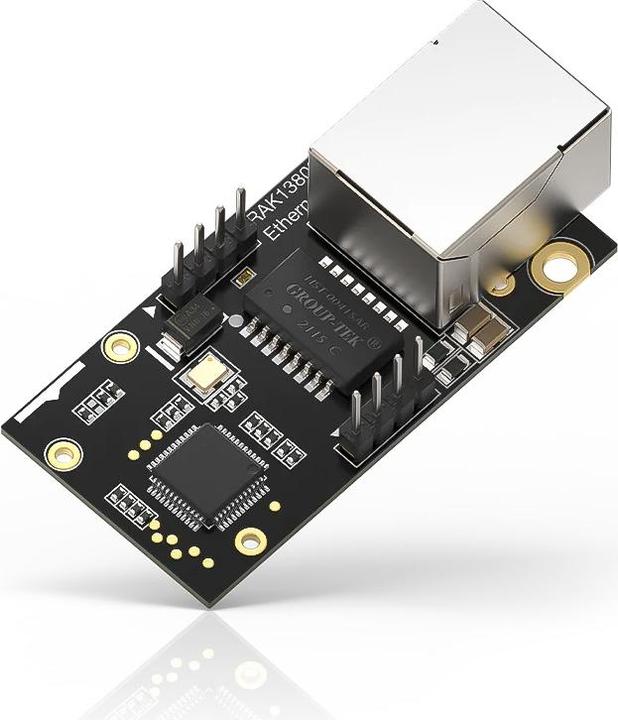

RAK Wireless WisBlock RAK13800 Ethernet Interface W5100S-L

The WisBlock RAK13800 is an Ethernet interface module that adds wired Ethernet communication to WisBlock systems. Based on the WIZnet W5100S chip, this module supports 10BaseT and 100BaseT Ethernet transmission speeds and offers the possibility of supplying the WisBlock modules with power via an optional PoE (Power over Ethernet) module. It is ideal for projects that require a reliable and fast internet connection.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock base board. Unlike conventional plug-in connections, the modules are fixed to the base board with screws. This creates a secure and reliable fastening with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for prototyping applications in the professional or hobby sector.

Features:

• Based on the WIZnet W5100S-L chip.
• Supports hard-wired Internet protocols and four independent sockets simultaneously.
• Provides an SPI host interface.
• Integrated 10BaseT/100BaseTX Ethernet PHY.
• Supports auto-negotiation and auto-MDIX.
• Features network indicator LEDs.
• Supply voltage is 2.97 V to 3.63 V.
• Supports PoE with the RAK19018 daughterboard.

Application examples:

• Development of IoT devices that require a stable, wired internet connection.
• Building network projects with Arduino or similar platforms that require an Ethernet interface.
• Integration into smart home systems for reliable data transmission.

Technical data:

• Manufacturer: RAK Wireless
• Manufacturer SKU: 100076
• Model: RAK13800
• Chip: WIZnet W5100S-L
• Ethernet: 10BaseT/100BaseTX
• Memory: Internal 16Kbytes for TX/RX buffers
• Voltage: 2.97 V ~ 3.63 V
• Dimension: 54 x 25 x 17mm
• Weight: 12.4g

Scope of delivery:
1x WisBlock RAK13800 Ethernet Interface W5100S-L.
