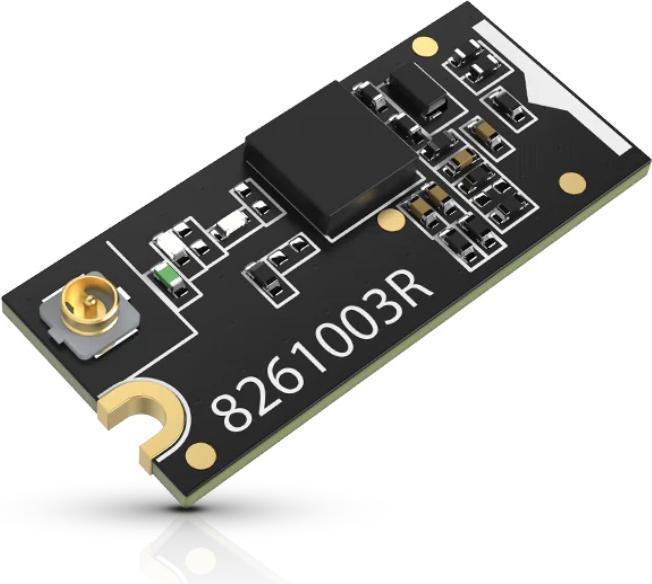

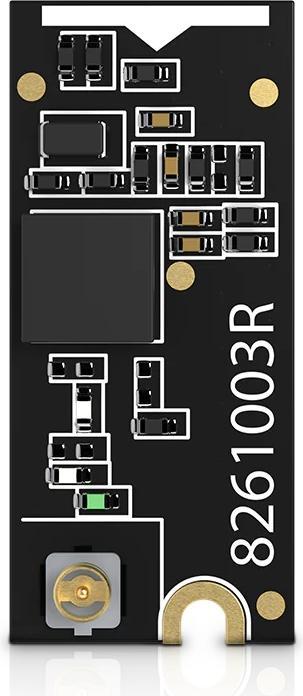

RAK Wireless WisBlock RAK12500 GPS module ZOE-M8Q

The WisBlock RAK12500 GPS Module ZOE-M8Q is a high-precision solution for location determination and tracking applications. Based on the u-blox ZOE-M8Q chip, this module supports a variety of satellite data protocols such as GPS, GLONASS, QZSS, and BeiDou. It is characterized by its exceptional performance, high sensitivity, and minimal acquisition time. The module is particularly suitable for IoT solutions that require accurate location determination with low energy consumption.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions to create your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws. This creates a secure and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is especially suitable for prototyping applications in both professional and hobbyist settings.

Features:

• Utilizes the high-precision GNSS chip u-blox ZOE-M8Q.
• Location accuracy of ±2.5 meters.
• Speed accuracy of ±0.05 m/s.
• Supports satellite protocols such as GPS, GLONASS, QZSS, and BeiDou.
• Communication with WisBlock Core via Serial and I2C.
• Update rate of 10 Hz.
• Location fix in 29 seconds from cold start, 1 second from warm start.

Technical Details:

• Manufacturer: RAK Wireless
• Manufacturer SKU: 110016
• Model: RAK12500
• Chip: u-blox ZOE-M8Q
• Satellites: GPS, GLONASS, QZSS, BeiDou
• Communication: Serial, I2C
• Update rate: 10 Hz
• Location accuracy: ±2.5 m
• Speed accuracy: ±0.05 m/s
• Dimensions: 23 x 10.2 x 2.2 mm
• Weight: 8.5 g

Included in the package:

• 1x WisBlock RAK12500 GPS Module ZOE-M8Q

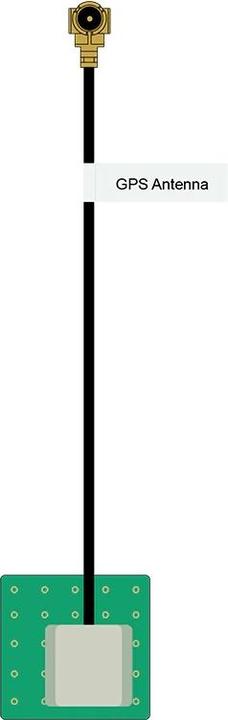

• 1x GPS antenna.
