RAK Wireless WisBlock RAK12022 MAX31865 PT100 Temperature Sensor IO Module

Ratings
Delivered tomorrow
7 items in stock at third-party supplier
Supplied by

Product details

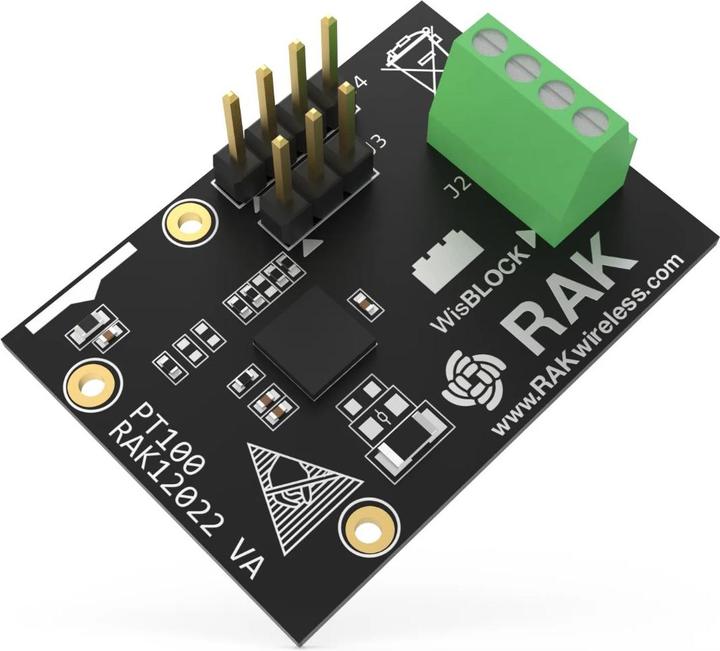

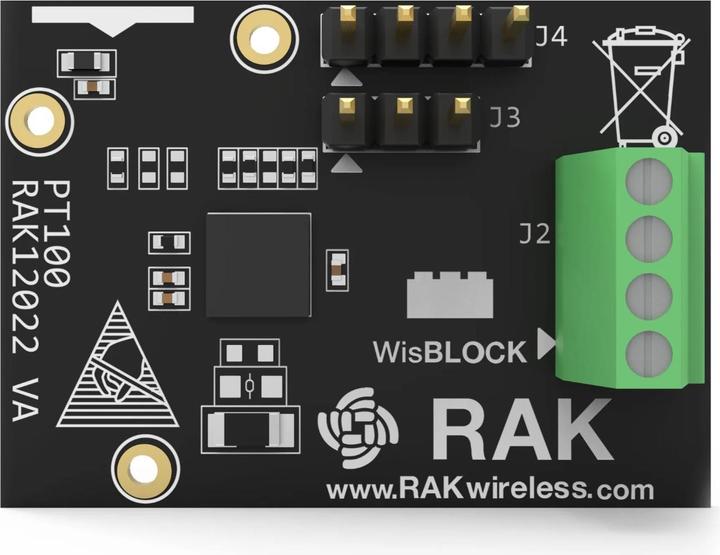

The RAK12022 is a PT100 sensor IO module optimised for PT100 temperature sensors and uses the MAX31965 digital converter. It supports 2-wire, 3-wire and 4-wire PT100 sensors and provides an SPI interface. The module adds an industrial temperature sensor option to the WisBlock temperature sensor series.
RAK Wireless' WisBlock ecosystem offers compact and modular solutions to create your own IoT LoRaWAN nodes. A wide variety of CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike conventional plug-in connections, the modules are fixed to the base board with screws. This creates a secure and reliable mounting with industrial quality. Thanks to the modular and compact design, WisBlock is particularly suitable for applications in prototype construction in the professional or hobby sector.

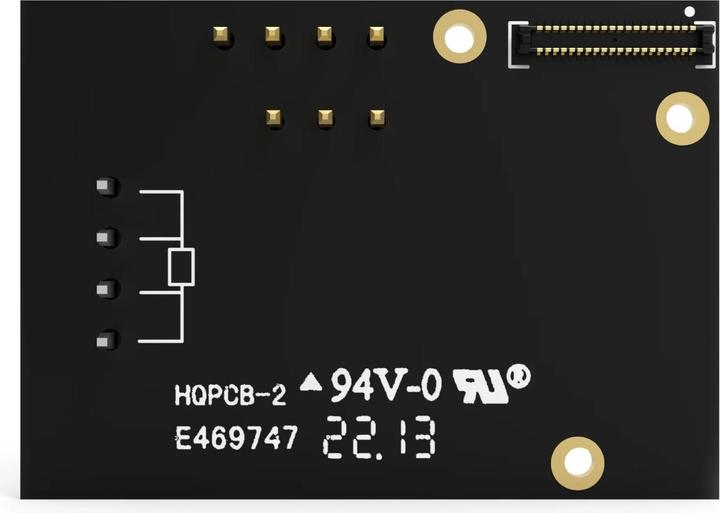

Note: The module is connected to a RAK BaseBoard via the 40-pin IO slot.

Recommended accessories:
WisBlock RAK5005-O Base Board
WisBlock RAK19007 Base Board 2nd Gen
WisBlock RAK19010 base board with power slot
WisBlock Dual IO Base Board RAK19011 with Powerslot

Features:
Fully differential VREF inputs

Technical Details:
Manufacturer: RAK Wireless
Manufacturer's SKU: 110192
WisBlock built-in connector: WisBlock IO
Model: RAK12022
Microchips: 1x MCP2518FD, 1x ATA6563
Sensor connections: 1x 2-wire, 1x 3-wire, 1x 4-wire
Interface: SPI compatible interface
Nominal temperature resolution: 15-bit, 0.03125 NC (varies due to RTD non-linearity)
RTD chip: MAX31865
Overall accuracy: max. 0.5 NC (0.05% of full scale) under all operating conditions
maximum conversion time: 21ms
power supply: 3.3V
operating temperature: -40~85°C
dimensions: 25 x 35 x 12.3mm
Weight: 7.5g

Scope of delivery:
1x WisBlock RAK12022 MAX31865 PT100 Temperature Sensor IO Module.
