RAK Wireless BastWAN LoRa Breakout Board RAK3244 EU868

Ratings
BrandMore from RAK Wireless
Currently out of stock
Free shipping starting at 50.–

Product details

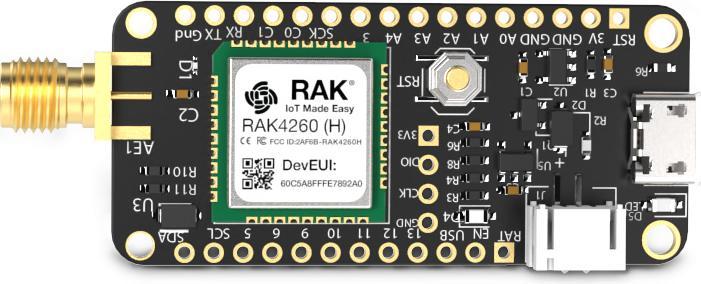

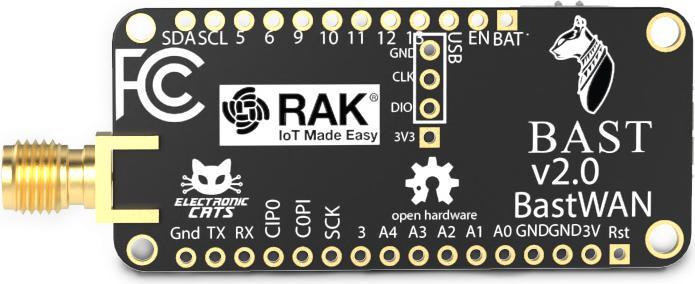

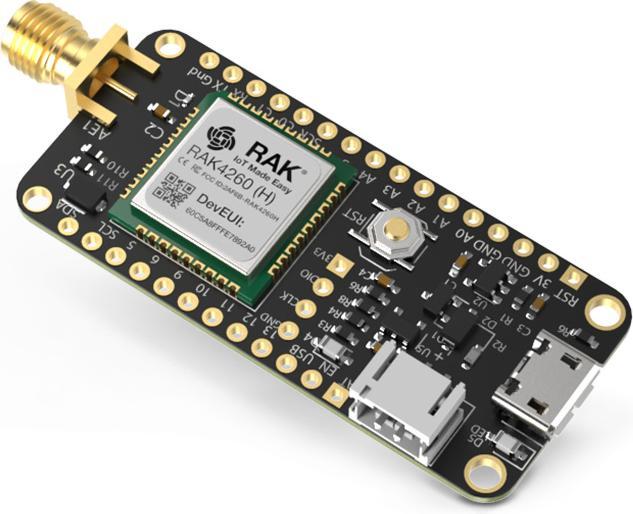

This is a compact LoRaWAN breakout developer board from RAK Wireless. The board is powered by a RAK4260 module, which integrates a 32-bit ARM Cortex MCU and a LoRa transceiver. It features a micro-USB port and a LiPo battery connector, as well as an ATECC608A crypto-authentication chip and 2MB of SPI flash memory. The board comes pre-installed with the UF2 bootloader and appears as a virtual drive. Since this bootloader is BOSSA-compatible, it can be used directly with the Arduino integrated development environment (IDE), MakeCode, and many other programs.

Features:

  • 48MHz SAML21 32-bit ARM Cortex MCU
  • 256KB flash and 32KB RAM memory
  • 32.768 kHz RTC
  • LoRa transceiver with up to 20dBm transmission
  • 20 IO pins
  • LoRaWAN 1.0.2 compatible

Technical Details:

  • Manufacturer: RAK Wireless
  • Model: RAK3244
  • Voltage: 3.3V
  • Max Current: 500mA
  • MCU: 48MHz SAML21 32-bit ARM Cortex
  • Interface: Micro-USB, SPI, I2C
  • LoRaWAN Protocol: 1.0.2 Class A&C
  • LoRaWAN Frequency: EU868MHz
  • Receiver Sensitivity: up to -148dBm
  • Maximum Transmission: up to 20dBm
  • Number of IO Pins: 20
  • Memory: 256KB flash and 32KB RAM
  • Additional Features: LiPo battery connector and ATECC608A crypto-authentication chip
  • Dimensions: 60.8 x 23 x 7.5mm
  • Weight: 39g

Package Contents:

  • 1x BastWAN LoRa Breakout Board RAK3244 EU868
  • 1x LoRa Antenna 868MHz
  • 1x Micro-USB Cable
  • 1x LiPo Connector Cable PH2.0
  • 8x 4p Stifle Strips.

Key specifications

Development board type
Board
Memory
0.26 MB
Processor family
ARM
Clock speed
48 MHz
Item number
24896853

General information

Manufacturer
RAK Wireless
Category
Development boards + Kits
Release date
27.3.2023

Development board properties

Development board type
Board
Processor family
ARM
Clock speed
48 MHz
Memory
0.26 MB
Flash memory
256 kB

Power supply

Operating voltage
3.30 V

Connections

USB ports
Micro USB-B
Exact USB ports
Micro USB-B 2.0 (1x)
Number of I/O
20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x BastWAN LoRa Breakout Board RAK3244 EU868, 1x Lipo connection cable PH2.0, 1x LoRa antenna 868MHz, 1x Micro-USB cable
Additionally required (not included)
1x Lipo connection cable PH2.0, 1x LoRa antenna 868MHz, 1x Micro-USB cable

Product dimensions

Length
7.50 mm
Width
60.80 mm
Height
23 mm
Weight
39 g
