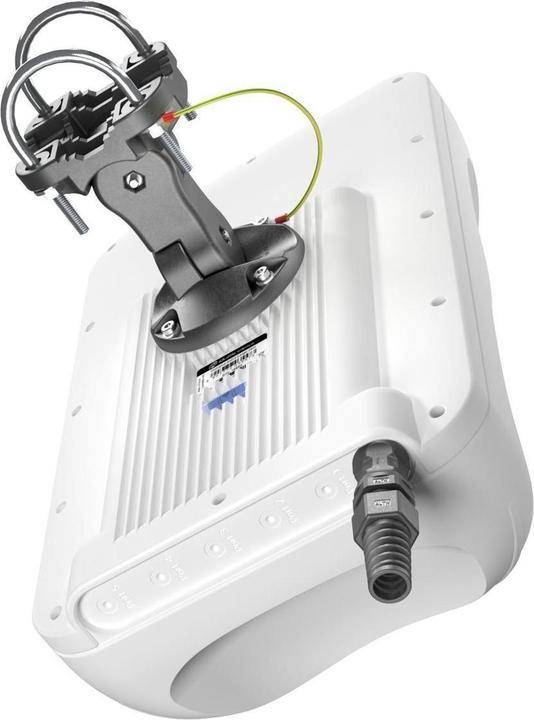

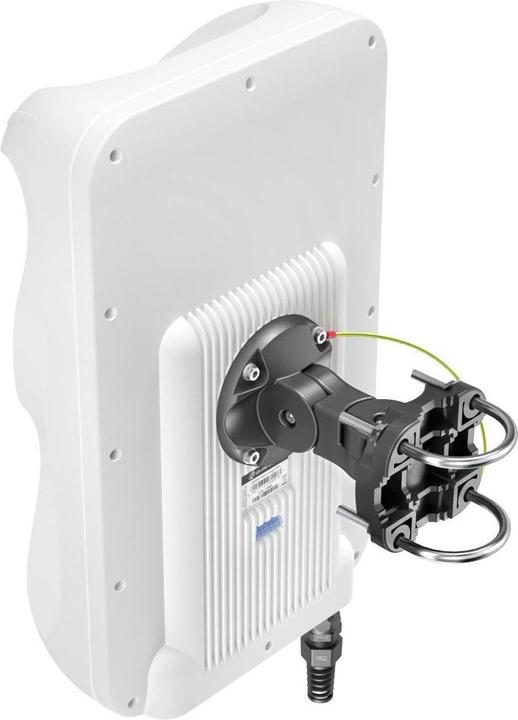

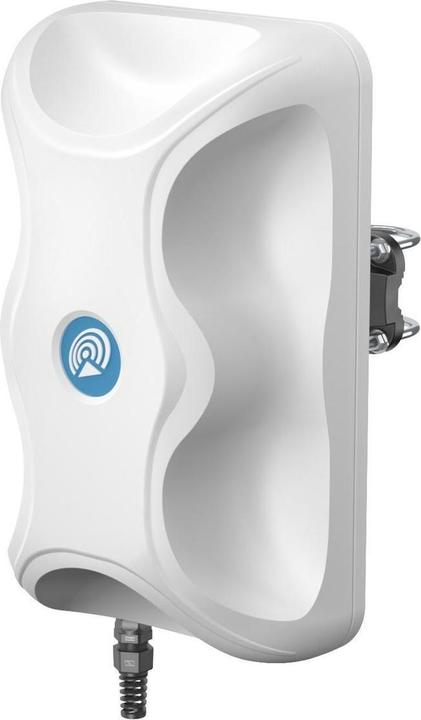

Quwireless QuMax A500M

Integrated multi-band LTE and 5G panel antenna with PoE splitter and installation space for Teltonika TRB500 (all-in-one)

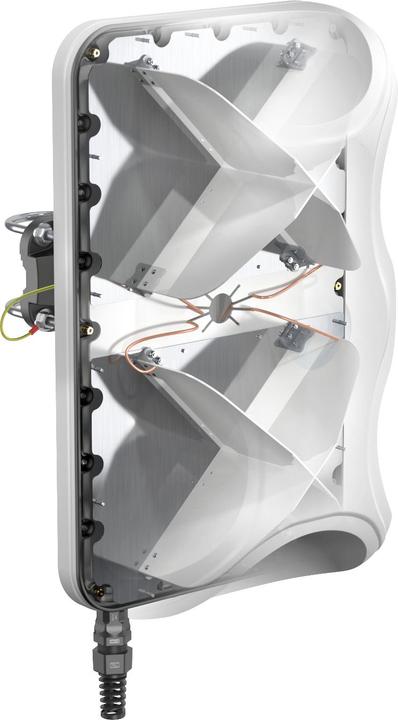

QuMax for TRB500 is a high-performance directional antenna designed for use in a variety of wireless communication applications. This all-in-one product consists of multiband 5G antennas and a PoE splitter housed in an IP67 enclosure. It offers a gain of 7.5 dBi and a wide radiation pattern, making it suitable for both urban and rural environments.

The set includes a PoE splitter that allows you to split data and power from a single Ethernet cable while maintaining gigabit transmission speeds, with the LAN port protected against damage from overvoltage, short circuits, or improper connections.

By combining QuMax with TRB500 in the antenna housing, you get a complete outdoor solution with diverse application scenarios such as public transportation, energy supply, IoT, and mining.

5G / LTE antenna specifications

Frequency:

• 0.617 - 0.96 GHz
• 1.7 - 2.7 GHz
• 3.3 - 4.6 GHz
• 4.7 - 6.0 GHz

Gain:

• 0.617 - 0.96 GHz: 6 dBi
• 1.7 - 2.7 GHz: 7 dBi
• 3.3 - 4.6 GHz: 7 dBi
• 4.7 - 6.0 GHz: 5.5 dBi

Supported LTE bands:

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G bands:

• n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR:

• <2.00, max <3.00

Radiation pattern:

• 80°/80° ±15°

Polarization:

• X (+-45 degrees)

Impedance:

• 50 Ω

Mechanical specifications

Materials:

• ABS, Aluminum, PTFE, Fiberglass

Connection type:

• RJ45

Water protection:

• IP67.
