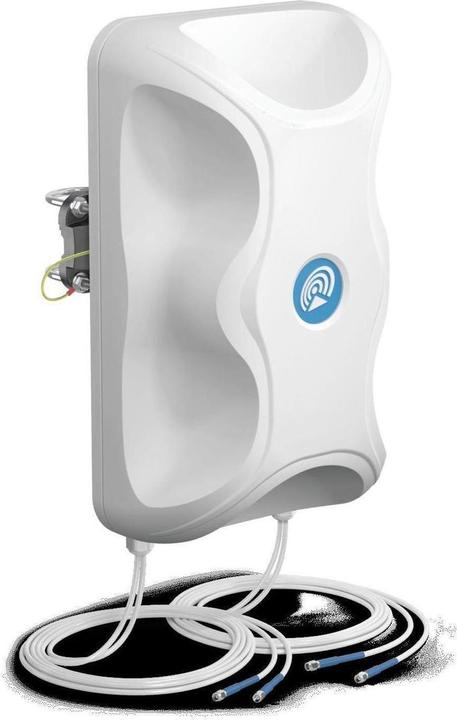

Quwireless AP5G4-G - QuPanel 5GLTE Global MIMO 4x4, 5m

Directional ultra wideband 5G/LTE MIMO 4x4 antenna

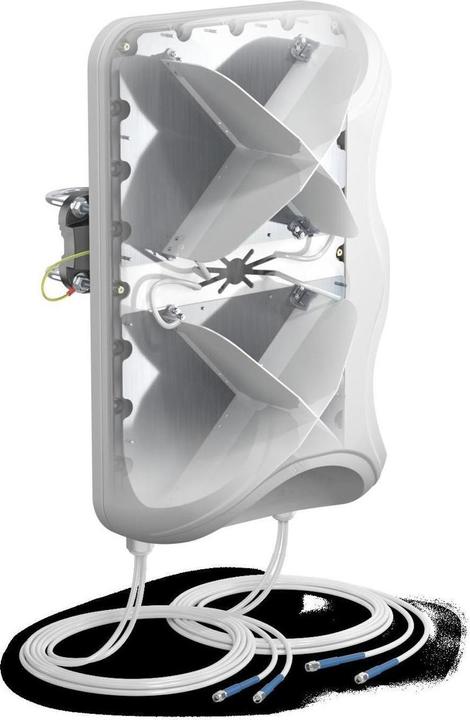

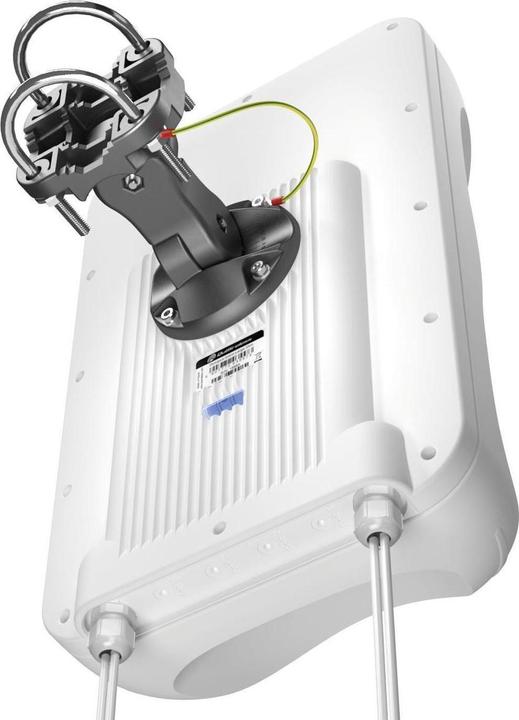

The QuPanel 5G/LTE directional MIMO 4x4 is an ultra wideband 5G outdoor antenna. It is primarily designed for LTE/5G/3G/2G devices that require high-efficiency connections. The antenna covers many LTE bands, including the new Extended LTE Band 71, and frequencies from 600 to 6000 MHz. The mounting bracket allows the antenna to be installed on a pole or wall, enabling client devices to receive Internet via LTE/5G/3G/2G. It is an ideal solution for use with all industrial and domestic 4x4 5G modems and routers.

5G / LTE Antenna Specification
Frequency

• 617 - 960 MHz
• 1.7 - 2.7 GHz
• 3.3 - 4.6 GHz
• 4.7 - 6.0 GHz

Gain

• 617 - 960 MHz: 6 dBi
• 1.7 - 2.7 GHz: 7 dBi
• 3.3 - 4.6 GHz: 7 dBi
• 4.7 - 6.0 GHz: 5.5 dBi

Supported LTE Bands

• 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 46, 47, 48, 49, 52, 53, 65, 66, 67, 68, 69, 71, 85, 103, 106

Supported 5G Bands

• n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n53, n65, n66, n67, n71, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n256

VSWR

• <2.00, max <3.00

Beamwidth

• 80°/80° ±15°

Polarization

• X (±45 degrees)

Impedance

• 50 Ω

Mechanical Specification
Materials

• ABS, aluminum, PTFE, fiberglass

Connector Type

• SMA

Ingress Protection

• IP67

Dimensions

• 486.0 x 292.2 x 105.6 mm
• 19.13 x 11.50 x 4.16 inch

Weight

• 2.8 kg
• 6.17 lbs

Operating Temperature

• From -40°C to 80°C
• From -40°F to 176°F

Mast Diameter

• 25-60 mm
• 0.98-2.36 inch.
