Puretools Matrix Switcher PT-MA-HD88DA HDMI
Only 3 items in stock at supplier
Product details

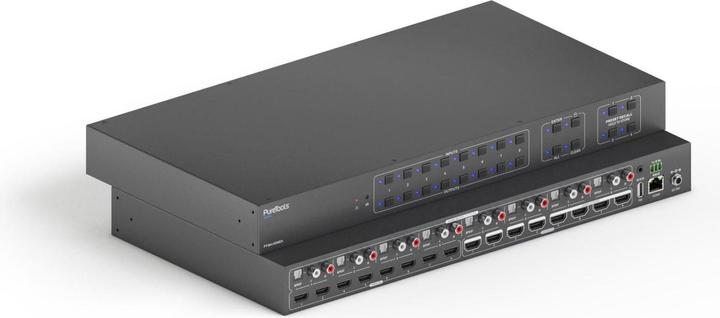

The PT-MA-HD88DA Matrix Switcher from Puretools is a state-of-the-art HDMI matrix solution that enables seamless switching of up to 8 HDMI signals to 8 outputs. With a maximum resolution of 3840 x 2160 pixels (Ultra HD 4K) and a data transfer rate of 18 Gbps, this switcher is ideal for applications that require high image quality and fast signal transmission. The integrated downscaler allows for the adjustment of 4K content to 1080p, making it versatile for various display requirements. Control is facilitated through a user-friendly web GUI, as well as CEC, RS232, and IR, allowing for flexible integration into existing systems. Additionally, the switcher supports modern standards such as HDMI 2.0a, HDCP 2.3, HDR, and Dolby Vision, equipping it for the latest audio and video formats.
- Control via web GUI, CEC, RS232, and IR for flexible integration
- Integrated audio matrix with analog and digital audio outputs
- Supports HDR and Dolby Vision for enhanced image quality
- Firmware updates via remote access to ensure up-to-date performance
- Maximum refresh rate of 60 Hz for smooth playback.
Switch Box Type | HDMI Switch |
Connectable devices (input) | 8 |
Connectable devices (output) | 8 |
Main device port | 3.5mm, HDMI, RJ45, USB Type-A |
Video connections | HDMI Type A |
Audio Connections | Cinch S/PDIF (1x), HDMI (1x), Optical TOSLINK (1x) |
Exact USB ports | USB-A 2.0 (1x) |
Item number | 15851519 |
Manufacturer | Puretools |
Category | Switch box |
Manufacturer no. | PT-MA-HD88DA |
Release date | 11.2.2020 |
Connectable devices (input) | 8 |
Switch Box Type | HDMI Switch |
Connectable devices (output) | 8 |
Max. picture resolution | 3840 x 2160 pixels |
HDMI version | 2.0a |
Max. data transfer rate | 2250 MB/s |
Refresh rate | 60 Hz |
Cable length | 43600 cm |
Main device port | 3.5mm, HDMI, RJ45, USB Type-A |
Video connections | HDMI Type A |
Audio Connections | Cinch S/PDIF (1x), HDMI (1x), Optical TOSLINK (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Network connections | RJ45 (1x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Array |
Length | 436 cm |
Width | 436 cm |
Height | 43.90 cm |
Weight | 3000 g |
Length | 53 cm |
Width | 34 cm |
Height | 12.20 cm |
Weight | 4.36 kg |
