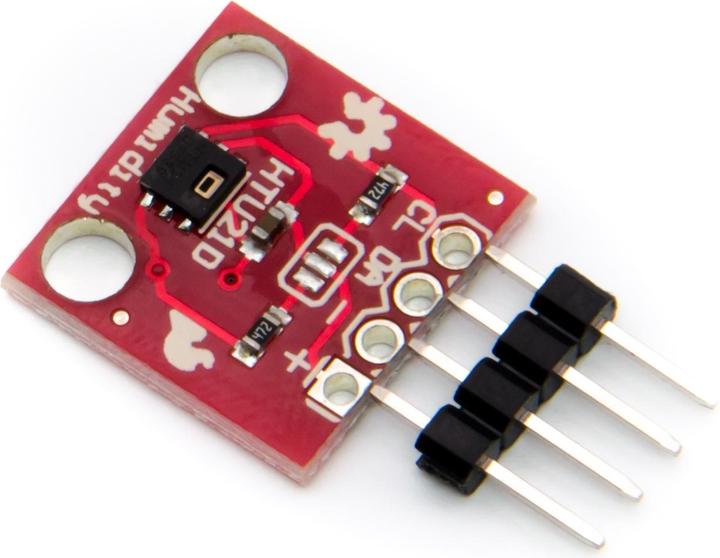

Purecrea HTU21D Temperature and Humidity Sensor I2C
Electronics kitSupplied by
Free shipping starting at 50.–
The HTU21D is an affordable and accurate digital humidity and temperature sensor. Thanks to the I2C interface, you can easily read the humidity and temperature. This sensor is perfect for a weather station or any other applications where you want to measure humidity.

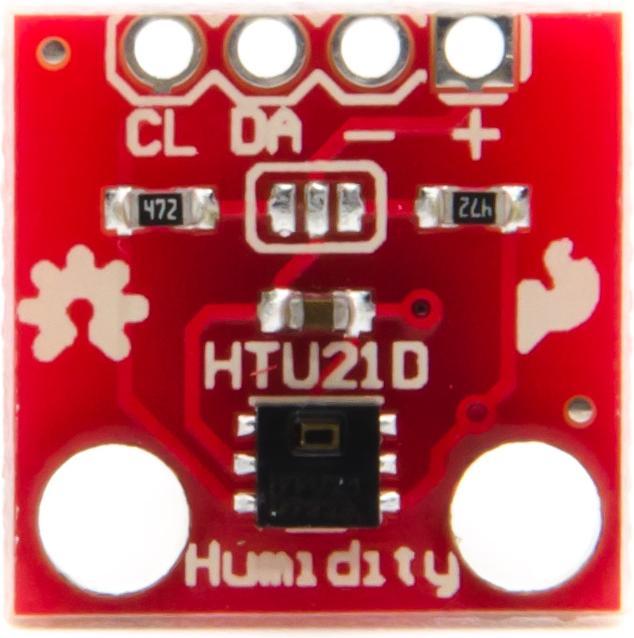

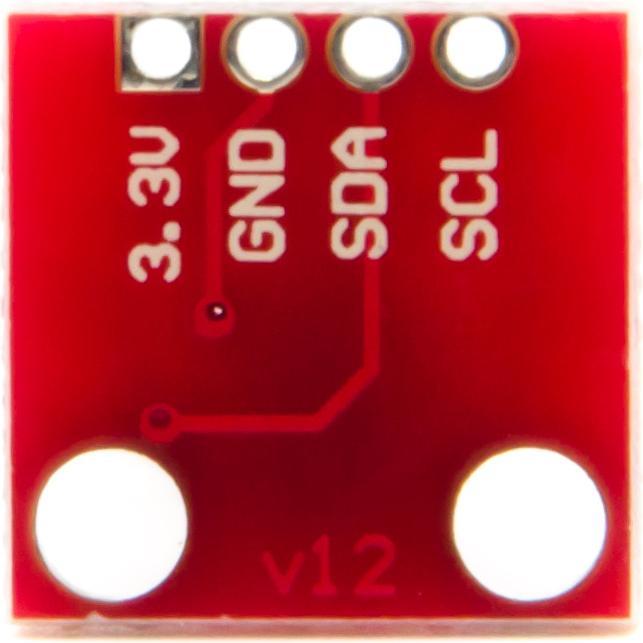

Important Info: Activating the I2C pull-up resistors: There are two 4.7 kOhm resistors on the breakout board that pull up the SDA and SCL lines. If you want to operate multiple sensors on I2C, only one breakout board should have the resistors. On the HTU21D breakout board, the resistors are not connected to VCC by default. To activate them, you need to connect the three solder points on the top of the board with solder.
Technical Details:
Operating Voltage: 1.5-3.6 V
Interface: I2C
Humidity Measurement Range: 0 to 100 % RH
Temperature Measurement Range: -40 °C to 125 °C
Humidity Accuracy: +/- 2 % RH
Temperature Accuracy at 25 °C: +/- 0.3 °C
Dimensions: 15 x 15 x 2.7 mm
Weight: 1.5 g
Included in Delivery:
1x HTU21D Temperature and Humidity Sensor I2C
1x 4x1p Pin Header.
Sensors | Temperature sensor |
Scope of delivery | 1x HTU21D temperature and humidity sensor I2C, 1x pin header 4x1p |
Compatible hardware | Various |
Item number | 36705060 |
Manufacturer | Purecrea |
Category | Electronics modules |
Release date | 26.6.2023 |
Compatible hardware | Various |
Module type | Electronics kit |
Sensors | Temperature sensor |
Shield | I/O shield |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x HTU21D temperature and humidity sensor I2C, 1x pin header 4x1p |
Length | 15 mm |
Width | 15 mm |
Height | 2.70 mm |
Weight | 1.50 g |
