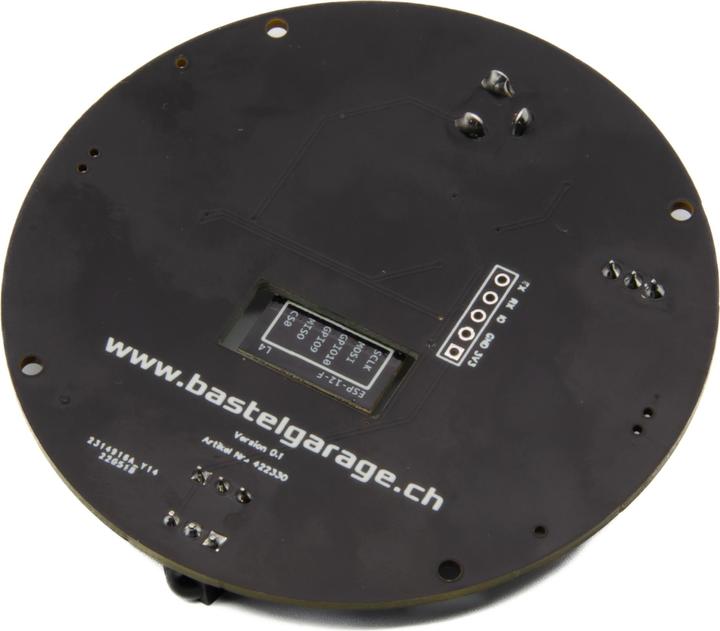

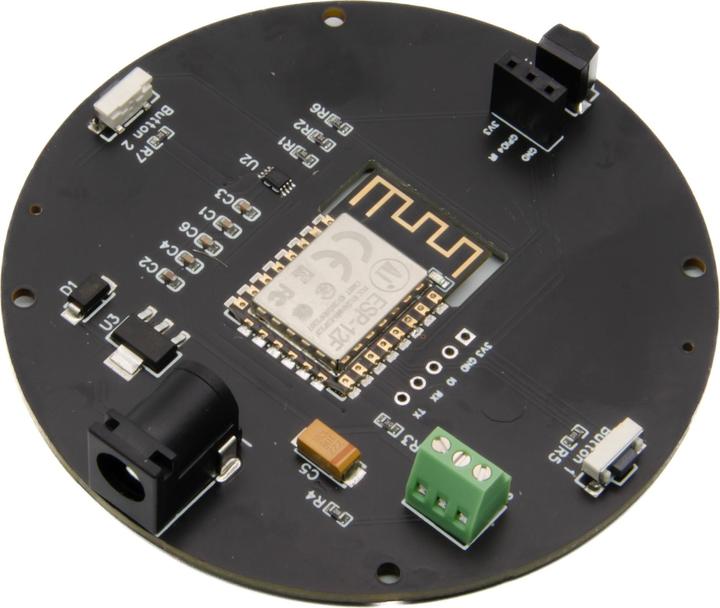

Purecrea ESP8266 Wled Board D75

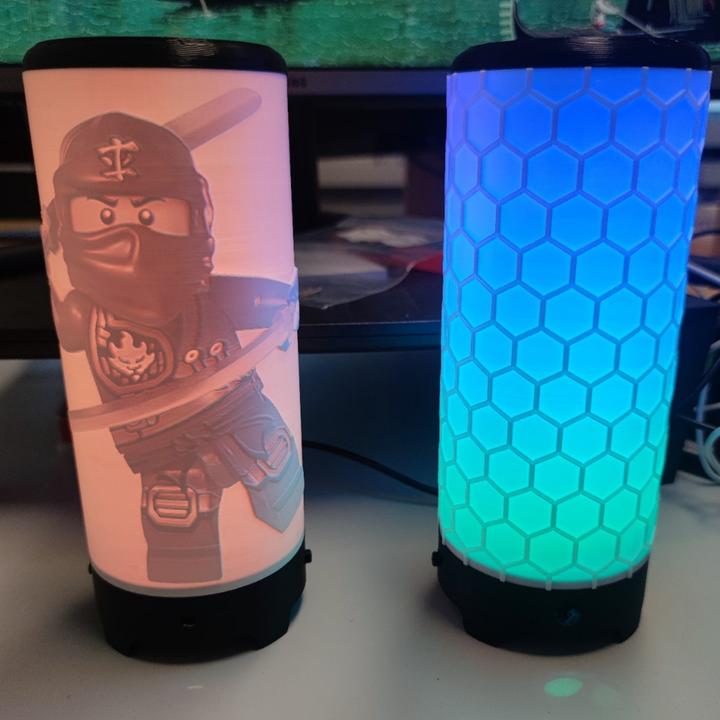

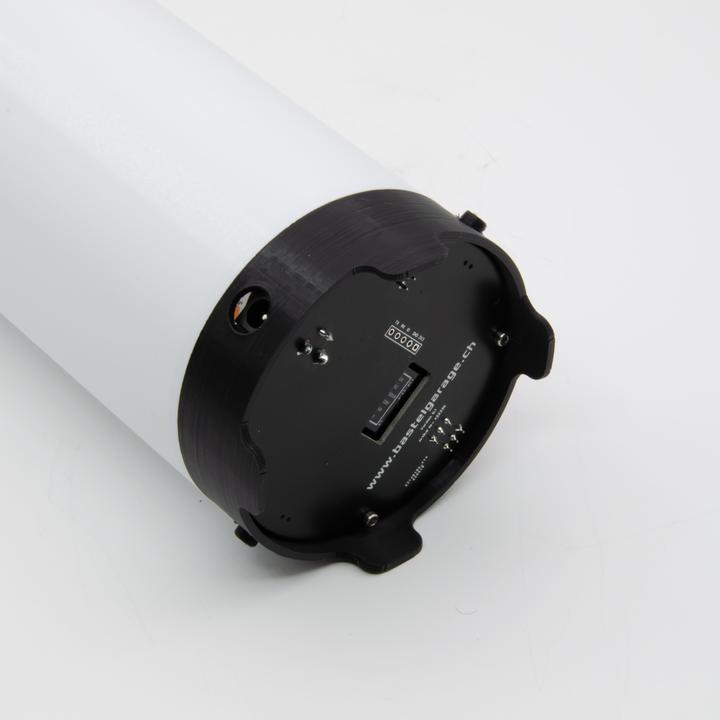

With this WLED board, you can easily build a custom decorative lamp that you can control via WLED. The WLED firmware is already installed on the ESP8266, so no USB UART programmer is needed for flashing the firmware. The board is designed to be easily integrated into a decorative lamp. It features two buttons that allow you to control the lamp offline without WiFi. Additionally, you can control the WLED lamp with an IR remote using the IR receiver.

Note: If you want to create a 3D-printed lamp, ensure that heat dissipation is provided through ventilation slots.

Recommended accessories:

• WLED D75 decorative light accessory set
• WS2812B - 60LED/m LED NeoPixel strip 0.165m
• 5V DC 2000mA power supply AC/DC adapter 5.5mm/2.1mm connector
• Wire 3 x 0.75mm² 18AWG White/Green/Red
• Creality Ender-3 S1 Pro 220x220x270 3D printer

Features:

• 2x Buttons
• 1x IR receiver IRM-3638T
• WLED firmware pre-installed
• Easy connection of the WS2812 or SK6812 strip via terminal blocks
• App available for Android and iOS
• JSON and HTTP request APIs
• MQTT

Technical details:

• ESP8266 module: Ai-Thinker ESP-12F
• Operating voltage: 5V
• DC connection: 5.5/2.1
• IR receiver: IRM-3638T
• Diameter: 75mm
• Weight: 21g

Delivery includes:

• 1x ESP8266 WLED board D75.
