Purecrea 8x8 LED Dot Matrix Red with MAX7219 SMD
9 pieces in stock at third-party supplier
Product details

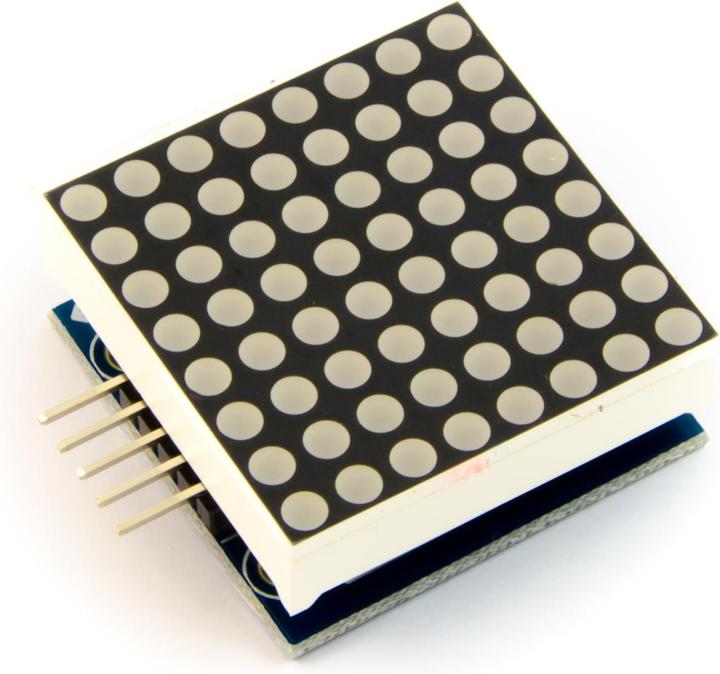

With this cascading 8x8 LED matrix module, you can easily control the 64 LEDs. The control is done via 3 pins (DIN, CS, CLK), and multiple modules can be easily connected together. There is already a ready-made library for control that you can add in the Arduino IDE. You can find the library in the Library Manager by searching for "LedControl." Then, under the examples, you will find the sketch LCDdemoMatrix. The pin headers are only included with this module and need to be soldered on. However, soldering is not a big deal and can be done in 5 minutes.
Technical details:
Breakout board with MAX 7219
8x8 LED matrix with red LEDs
SPI interface
Operating voltage: 5V
Cascadable
Size: 32 x 32 x 15.6 mm
Weight: 17 g

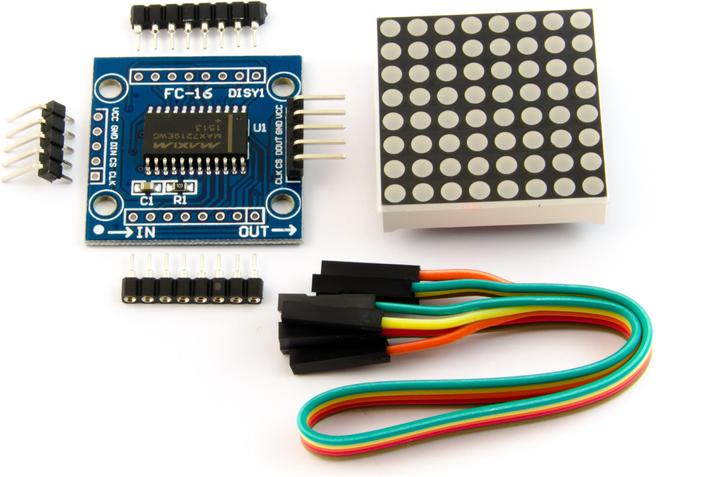

Delivery includes:
1x MAX7219 SMD module
1x 8x8 LED matrix red
2x angled pin headers (5-pin)
2x straight pin headers (8-pin)
5x jumper wires / Dupont 20 cm (various colors).
