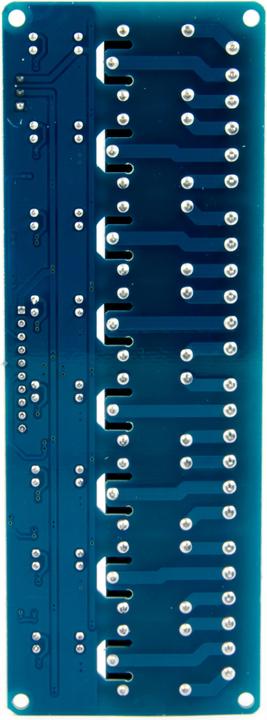

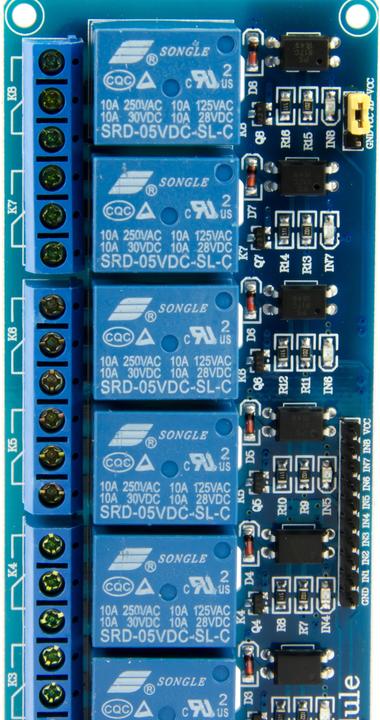

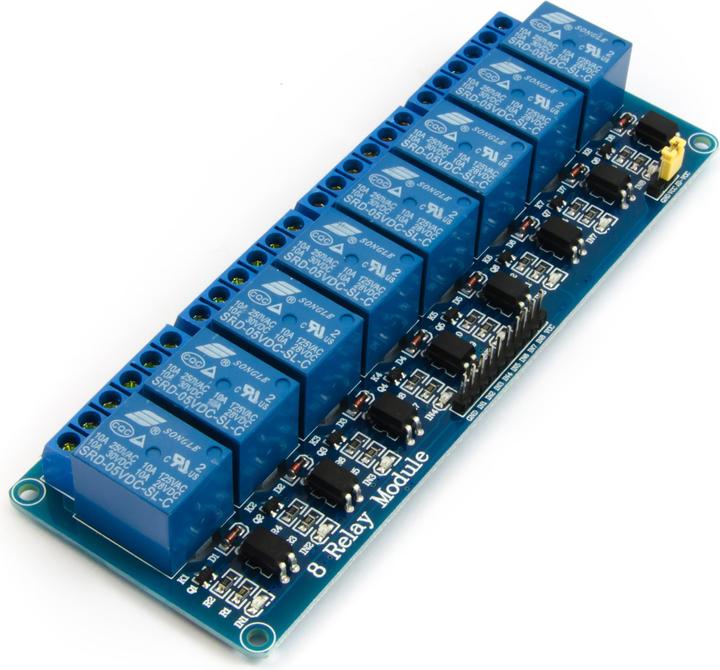

Purecrea 8-channel relay module

1Ratings
Delivered between Fri, 30.5. and Mon, 2.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

With this 8-channel relay module, you can easily control large loads using 5V from your Arduino or Raspberry Pi. The control lines of the relay are routed to header pins on the board, allowing for easy connection with Dupont cables to the Arduino. The load to be switched is connected via screw terminals. The relay module can be operated with 3.3V or 5V microcontrollers, making it suitable for use with the Raspberry Pi as well. I have also created two images so you can see how it is connected.

Technical details:
Relay switching current: approx. 8x60mA
Operating voltage: 3.3V to 5V
8x relays (switching capacity DC: max. 30V/10A, AC: max. 250V/10A)
Relays with 3 contacts (changeover switch)
Direct control with microcontroller via digital output
Header pin for control RM 2.54mm
8x 3 screw terminals for load connection
8x status LEDs for relay status indication
4x mounting holes 3mm
Size: 138 x 50 x 19mm
Weight: 105g

Delivery includes:
1x 8-channel relay module.

Key specifications

Item number
36359724

General information

Manufacturer
Purecrea
Category
Development boards + Kits
Release date
18.6.2023

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Connections

Analogue outputs
8
Digital outputs
8

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 8-channel relay module

Product dimensions

Weight
105 g
