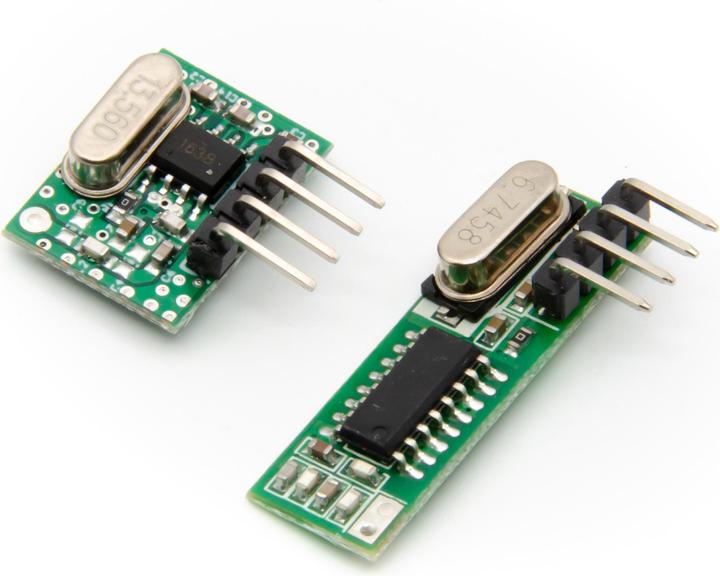

Purecrea 433MHz RF radio module set RX470-4 / WL102-341
More than 10 items in stock at third-party supplier
Product details
With these 433MHz RF modules, you can set up simple wireless communication with an Arduino, for example, to send temperature readings from a sensor to a main station. The set includes everything you need. You just need to solder the short antenna to the RX470-4 receiver and the long antenna to the WL102-341 transmitter.
Technical Details:

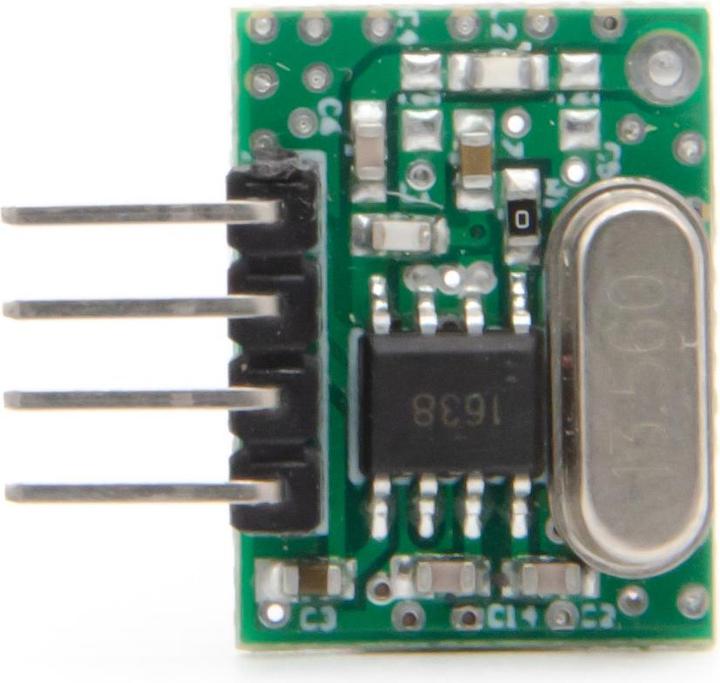

TX Transmitter
Type: WL102-341
Antenna: Short Antenna
Operating Voltage: 2-3.6V DC
Quiescent Current: 1uA
RF Frequency: 433.92 MHz
Dimensions: 16 x 12 x 6mm

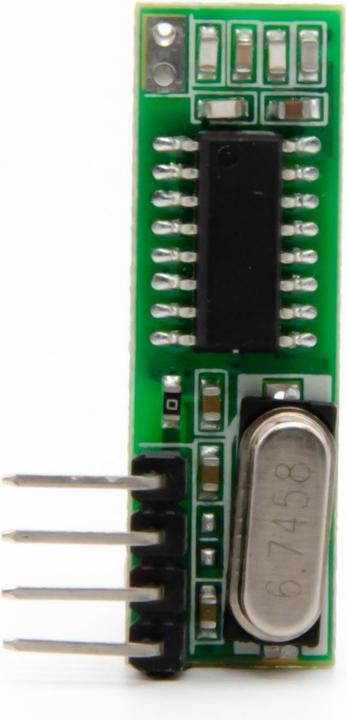

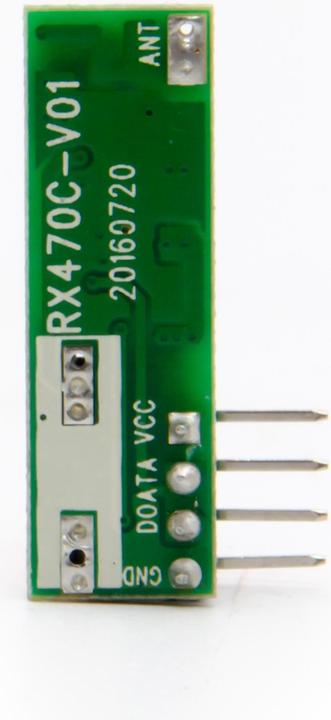

RX Receiver Technical Details:
Type: RX470-4
Antenna: Long Antenna
Operating Voltage: 2.2-5V DC
Quiescent Current: 1uA
Operating Current: ≤2.1mA (5V DC)
RF Frequency: 433.92 MHz
Transmission Rates: 2KHz to 10KHz
Dimensions: 30 x 9 x 6mm

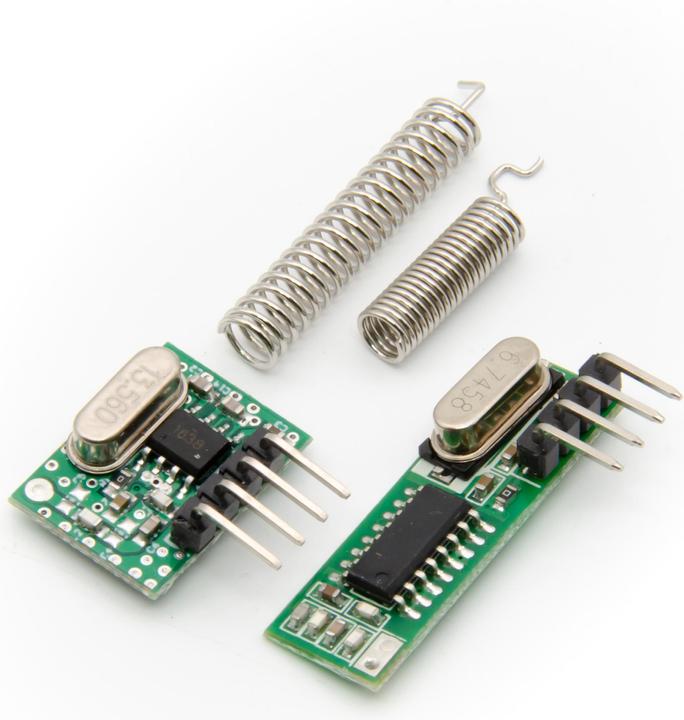

Included in the package:
1x Receiver RX470-4
1x Short Antenna for Receiver
1x Transmitter WL102-341
1x Long Antenna for Transmitter.
