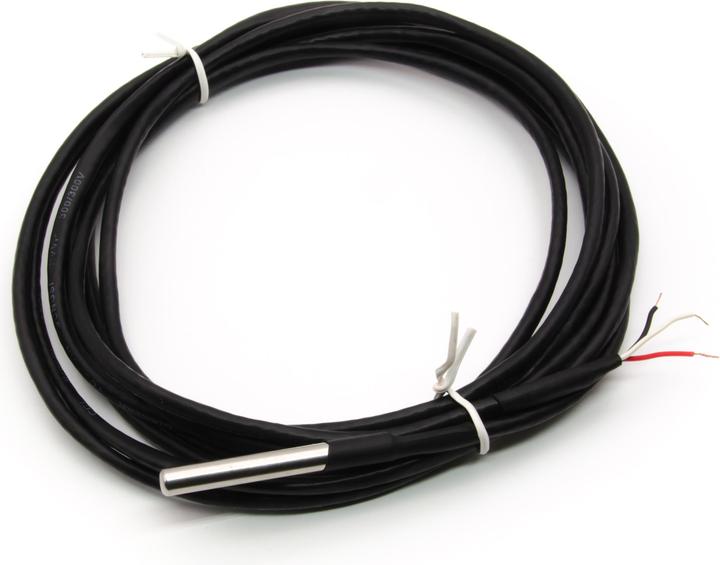

Purecrea 3m temperature sensor waterproof DS18B20 shielded

This 3 m long waterproof temperature sensor features a DS18B20 sensor chip with 1-Wire communication. The sensor is connected via a shielded cable, making communication with the temperature sensor less susceptible to interference. The DS18B20 is a digital temperature sensor housed in a TO92 casing. The sensor is very accurate and reliable, as it has been factory calibrated. To control it with an Arduino, you can use the DallasTemperature library. You only need one input on your Arduino to read the DS18B20. Multiple sensors can also be connected to one input. For the operation of the sensor, you will need a 4.7 kOhm resistor, which should be connected between VCC and Data (for example, if you have 5 sensors on the same input, you only need one resistor).

Technical details DS18B20:
Sensor type: DS18B20
Operating voltage: 3.0 - 5.5 VDC
Accuracy (-10 °C - +85 °C): ±0.5 °C
Measurement range: –55 °C to +125 °C
Max. allowable temperature of the probe: 100 °C
Probe diameter: 6 mm
Connection cable: VCC (red), GND (black), Data (white)
Length of connection cable: 3 m (deviations of up to 3 cm possible)
Weight: 60 g

Delivery includes:
1x 3 m waterproof temperature sensor DS18B20 shielded.
