Purecrea 1-channel relay module

3Ratings
BrandMore from Purecrea
Delivered between Mon, 4.8. and Tue, 5.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

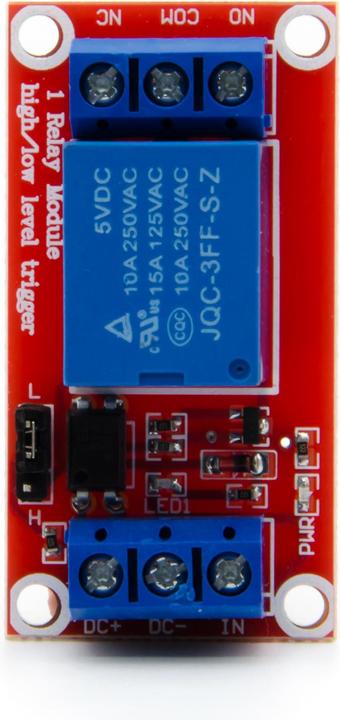

With this 1-channel relay module, you can easily control large loads using 5V from your Arduino or Raspberry Pi. The control lines of the relay are connected to screw terminals on the board. The load to be switched is also connected via screw terminals. For safety reasons, you should only operate the relays up to 30V. You can switch the control from low-level trigger to high-level trigger on the relay module using a jumper.

Technical details:
Control voltage IN: 3.3V or 5V DC
Supply voltage DC+ DC-: 5V DC
Relay current for switching approximately 5 to 10 mA
1x relay (switching capacity DC: max. 30V/10A, AC: max. 250V/10A)
Relay with 3 contacts (changeover switch)
Direct control with microcontroller via digital output (IN on the module)
3 screw terminals for load connection
Status LED for displaying relay status
4x mounting holes 3mm
Size: 50 x 26 x 19mm
Weight: 18g

Delivery includes:
1x 1-channel relay module.

Key specifications

Scope of delivery
1x 1-channel relay module
Compatible hardware
Arduino, Raspberry Pi
Item number
25475141

General information

Manufacturer
Purecrea
Category
Electronics modules
Release date
4.5.2023
Sales rank in Category Electronics modules
3 of 7531

Compatibility

Compatible hardware
Arduino, Raspberry Pi

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 1-channel relay module

Product dimensions

Length
50 mm
Weight
18 g

30-day right of return
24 Months Warranty (Bring-in)
