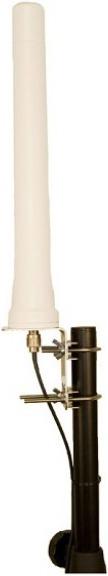

Poynting OMNI-296 - A-OMNI-0296-V1 - dual-band 2400-2500, 3300-3800 & 5000-6000 MHz omni-directional antenna

Poynting A-OMNI-0296-V1 - OMNI-296 Dualband WLAN 2400-2500, 3300-3800, and 5000-6000 MHz Omnidirectional Antenna

The omnidirectional dual-band WLAN antenna developed by Poynting Antennas can be connected to any WLAN access point, whether it uses older WLAN technology or the new dual-band WLAN technology. These antennas can resolve channel saturation and provide a high level of performance and flexibility. This means that the antenna can be used for point-to-point connections in environments with significant RF noise and congestion.

The antenna operates in two frequency bands, 2.4 GHz and 5 GHz, offering excellent utilization of the frequency spectrum. It has a maximum gain of 6 dBi in the 2.4 GHz band and a gain of 7.5 dBi in the 5 GHz band, providing optimal performance for reliable connections. The housing is made of ABS, a highly impact-resistant plastic that is also resistant to acids and other chemicals that may be present in industrial facilities. The antenna features an N connector at its base, which can be connected to a cable of the desired type and length.

Dualband 2.4 GHz and 5 GHz WLAN antenna with medium gain. Complies with IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac WLAN standards. This antenna also operates at Wi-Fi/WiMax/LTE frequencies of 3.3 to 3.8 GHz with a maximum gain of 7.5 dBi. Vandalism-resistant and waterproof housing.

Applications:

• Small businesses
• Construction sites
• Factories
• Open-pit mines
• Production facilities
• M2M
• Wi-Fi/WiMax/LTE 3.3 - 3.8 GHz applications
• Areas with many machines (cluttered environment)

Electrical Specifications:

• Frequency bands: 2400 - 2500 MHz; 3300 - 3800 MHz; 5000-6000 MHz
• Gain (Max.): 7.5 dBi
• VSWR: Forward power control: 10 W
• Input impedance: 50 Ohm (nominal)
• Polarization: Linear vertical
• Cable loss: Cable dependent
• Grounding: Yes
• Connector:...
