Pimoroni Picade Controller PCB PIM110

Various
Ratings
Delivered between Thu, 7.8. and Fri, 8.8.
5 pieces in stock at supplier
free shipping

Product details

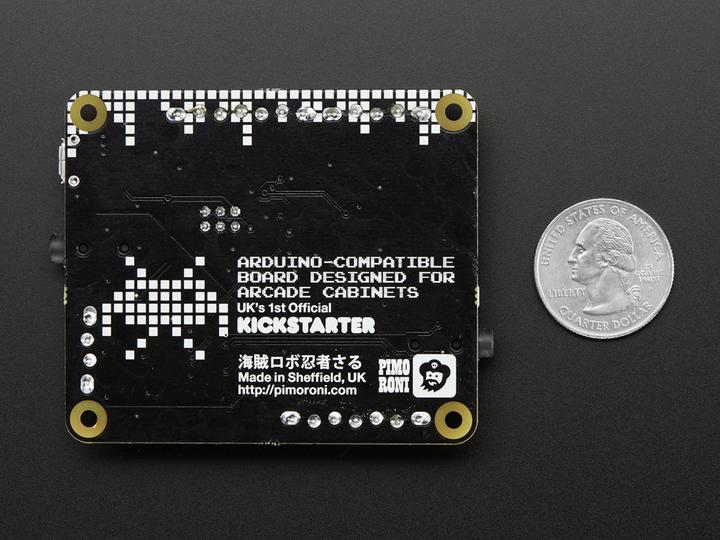

The Pimoroni Picade Controller Board is an Arduino-compatible board with an integrated 3W stereo amplifier, designed for use in arcade projects such as the Picade cabinet or the Picade console controller. Essentially, it provides everything you need to set up a Pi for your own DIY arcade console project.

The controller comes fully assembled and behaves like a keyboard when connected via USB, featuring a standard key layout (though you can reprogram it using the Arduino IDE). Connections are made with screw terminals for a solid, durable installation.

It uses the same microcontroller as the Arduino Leonardo (the ATmega32U4) and comes pre-installed with the Arduino bootloader and Pimoroni software.

Features:

* Powered by an ATmega32U4 (32KB, 2.5K RAM @ 16MHz)
* 6-pin ISP header for direct programming (also pre-installed with Arduino bootloader)
* Includes a 3W stereo amplifier (PAM8407) for use with 4 speakers
* Appears to the host as a USB HID device (keyboard)

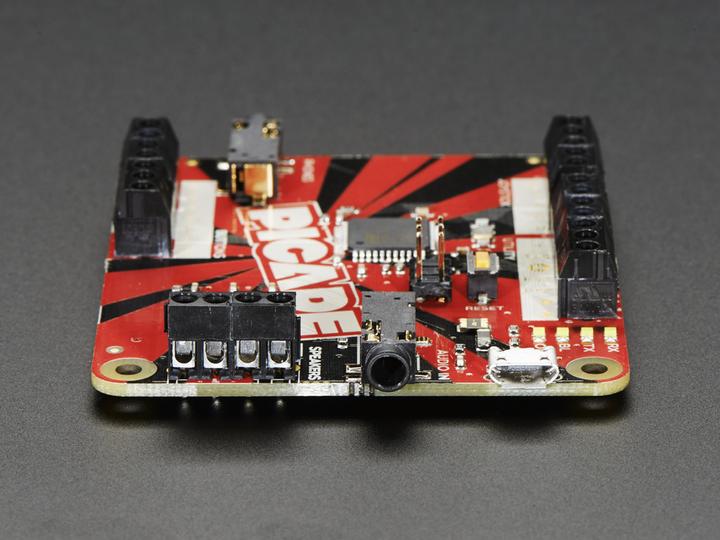

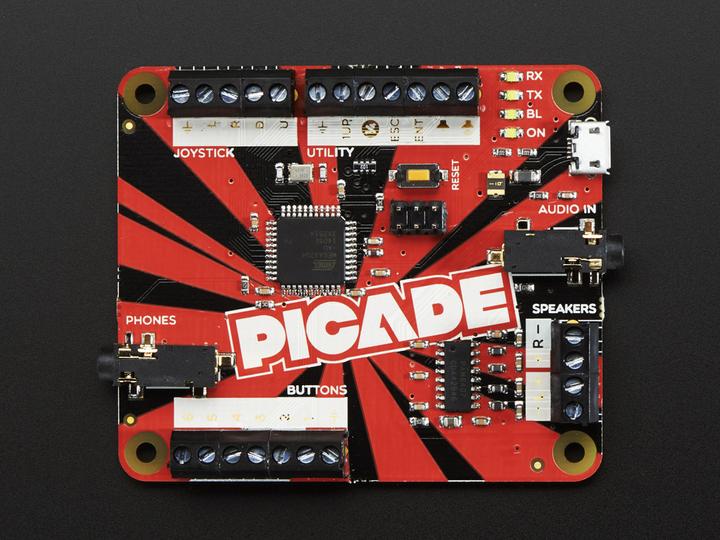

* Screw terminal connections for four-direction joystick, 12 buttons, and two speakers
* Reset button
* Mounting holes
* LED indicators for power, bootload, TX, and RX
* Mounting hole spacing: 59.4mm x 49.3mm / 2.3" x 1.9"
* Product dimensions: 75.4mm x 60.1mm x 12.1mm / 3.0" x 2.4" x 0.5".

Key specifications

Compatible hardware
Various
Item number
5998653

General information

Manufacturer
Pimoroni
Category
Electronics modules
Manufacturer no.
ada-2708
Release date
24.10.2015
Sales rank in Category Electronics modules
19 of 7531

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Various

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
75.40 mm
Width
60.10 mm
Height
12.10 mm

Package dimensions

Length
12 cm
Width
8 cm
Height
2 cm
Weight
30 g
