Phoenix Contact STTBS 4-MT

Ratings
BrandMore from Phoenix Contact
Currently out of stock
Free shipping starting at 50.–

Product details

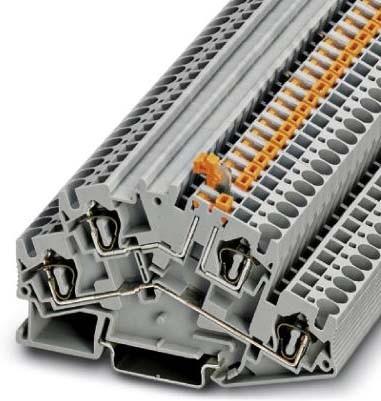

Description STTBS 4-MT - Knife disconnect terminal STTBS 4-MT Industrial package with 50 pieces knife disconnect terminal, cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, connection type: tension spring connection, width: 6.2 mm, color: gray, mounting type: NS 35/7.5, NS 35/15 Technical data: AWG max.: 12 AWG min.: 28 Stripping length (max.): 10 mm Connection (components): Tension clamp Color: Gray Prod. part no.: 3035470 Industrial grade: Yes Content: 50 pcs. Rated voltage: 500 V Rated current: 20 A Product dimension, width: 6.2 mm Type (manufacturer type): STTBS 4-MT max. cross section flexible: 4 mm² max. cross section rigid: 6 mm² min. cross section flexible: 0.08 mm² min. cross section rigid: 0.08 mm².

Key specifications

Item number
14929547

General information

Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
3035470
Release date
28.2.2021

Colour

Colour
Grey

Cable + Connector Features

Max. temperature
105 °C
Min. temperature
-60 °C
mounting type
DIN top-hat rail

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 Piece

Product dimensions

Length
5.50 cm
Width
0.62 cm
Height
9.24 cm
