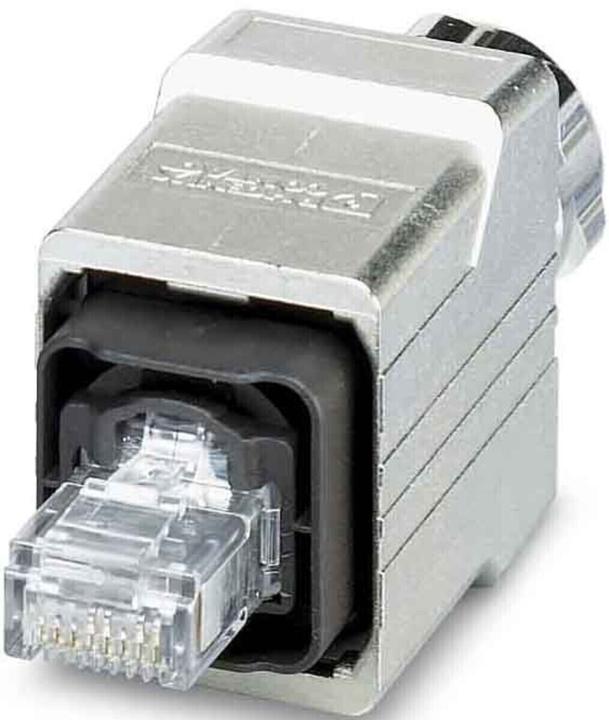

Phoenix Contact RJ45 connector, IP67 with push-pull

Ratings
BrandMore from Phoenix Contact
Delivered between Sat, 23.5. and Sat, 6.6.
Free shipping starting at 50.–

Product details

Gender: Male
LAN Category: Cat.5e
Mounting Type: Cable Mount
Number of Ports: 4
Connection Type: RJ45
Shielding Type: Shielded
Orientation: Straight
IP Class: IP65, IP67
Length: 68.8 mm
Width: 22 mm
Depth: 30 mm
Series: QUICKON QPD
Contact Material: Copper Alloy
Contact Coating: Gold over Nickel

The RJ45 QUICKON connector inserts are part of a series of push/pull connector inserts from the QUICKON series of RJ45 connectors. These connectors feature IDC quick connection terminals with contacts made of copper alloy. This professional series has a zinc die-cast housing, except for the specific part number which has a housing material made of PA-GF. The RJ45 connector inserts are available in 4- and 8-pole versions and can accommodate external cable diameters ranging from 5 mm to 8 mm. One part number includes a metallic EMC shielding and is also suitable for 1 Gbit/s.

Key specifications

Cable + connector type
Plug connectors
Plug type
RJ45
Cable length
0.07 m

General information

Item number
10280516
Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
1405141
Release date
27.12.2018
External links
Manufacturer's site (de)

Colour

Colour
Black

Material

Material group
Metal
Material
Metal

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
RJ45
Compatible hardware
Various
Temperature
-40 - 70 °C
Max. temperature
70 °C
Min. temperature
-40 °C
mounting type
Cable installation
Cable length
0.07 m
Connectors Design
Plug, straight
Number of cores
4x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 1.69

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 piece

Product dimensions

Length
6.88 cm
Width
2.20 cm
Height
3 cm
Weight
68.98 g
