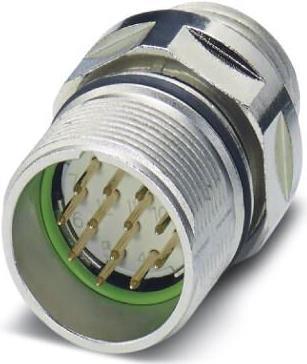

Phoenix Contact M23 Straight connector M23 connector, 17 poles, N-coded, soldered
7 items in stock at third-party supplier
Product details
The M23 straight connector from Phoenix Contact is a high-quality device connector designed for various applications in electronics. With 17 pins and an N coding, this connector provides a reliable connection for demanding environments. The connector is shielded and features solder connection technology that ensures a secure and durable connection. The design allows for front mounting and is equipped with a central fastening that can be positioned with a locknut. The M23 connector is suitable for use with standard and SPEEDCON locking mechanisms and offers IP67 and IP69K protection ratings, making it ideal for use in harsh environments. Made from a copper-zinc alloy, this connector is both robust and durable, making it an excellent choice for industrial applications.
- N-coded for specific applications
- IP67 and IP69K protection ratings for high resilience
- Suitable for standard and SPEEDCON locking
- Central fastening M20 x 1.5 for easy installation
- Solder connection for reliable electrical connection.
Plug type | M23 |
Cable + connector type | Plug connectors |
Cable length | 0.05 m |
Item number | 30175106 |
Manufacturer | Phoenix Contact |
Category | Cables + Plugs |
Manufacturer no. | 1624055 |
Release date | 25.4.2023 |
Material group | Metal |
Material | Copper |
Cable + connector type | Plug connectors |
Plug type | M23 |
Max. temperature | -999 °C |
Min. temperature | -999 °C |
mounting type | Front mounting |
Cable length | 0.05 m |
Manufacturer Type | 17 Pole, M23 straight plug M23 plug connector, N-coded, Soldered |
Connectors Design | Flat |
Number of cores | 17 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | 5, Axial seal, CA, Central fastening M20 x 1, Coding:N, Contact type: Pin, Device connector, Direction of rotation: Standard, For standard and SPEEDCON locking systems, Front wall, M23, Number of poles: 17, Positionable with lock nut, shielded: yes, Solder connection, Straight |
Length | 5 cm |
Width | 2.50 cm |
Height | 2.50 cm |
Weight | 38.90 g |
