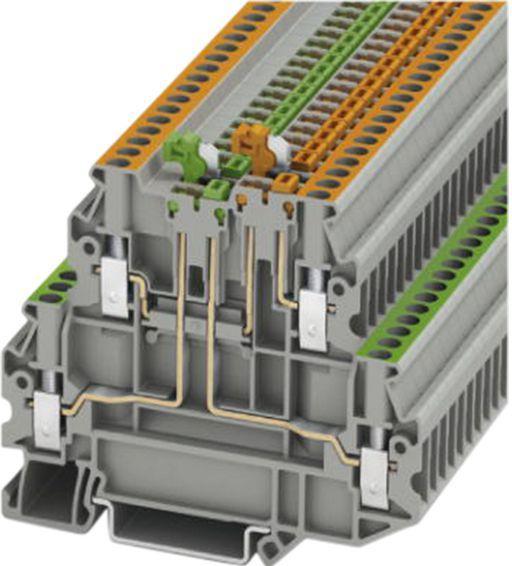

Phoenix Contact Knife discon terminal blk+ test socket

Series: Clipline UTT
Wire size: 26 → 12 AWG
Color: Gray
Rated current: 16A
Connection type: Screw
Operating voltage: 400 V
Minimum operating temperature: -60°C
Maximum operating temperature: +130°C

IEC 60947-7-1, flammability class V0 UL94. UL, cUL, EAC, CSA, cULus. Two-row terminal blocks for separation and measurement UT. The UT screw terminal block from Phoenix Contact combines the advantages of screw connection technology with the benefits of spring-loaded contacts. It features a standard separation zone on the upper level and a shaft with two functions on the lower level. The terminal blocks of the UTTB series also offer a level offset. When fully wired, they provide complete access to the lower connection level and perfect visibility of the lower markings and conductor entry.

Features and benefits:

• Each connection point supports large-area labeling
• Convenient circuit separation, thanks to lever-type separating knives
• Two separate potentials can be laid side by side by using bridges between non-adjacent terminal blocks
• Test socket screws for inserting test probes
• RoHS compliant.
