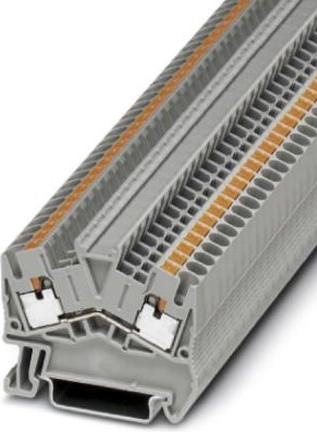

Phoenix Contact 2,5mm Feed through Terminal

Minimum order 7
Ratings
Delivered between Mon, 19.5. and Wed, 28.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

Series: PT Clipline
Wire size: 26 → 12 AWG
Cable cross-section: 0.14 → 4 mm²
Color: Gray
Rated current: 24 A
Number of levels: Single
Connection type: Plug-in
Operating voltage: 800 V

PT 2.5 through terminal blocks. 50% lower insertion force. Angled cable entry. Direct connection from 0.34 mm². The actuation button can be operated with any screwdriver. The compact design and front connection make wiring easier even in tight spaces. Equipped with four bridging slots for a wide range of possible bridging options.

Key specifications

Item number
9948047

General information

Manufacturer
Phoenix Contact
Category
Cables + Plugs
Manufacturer no.
3211799
Release date
22.10.2018
External links
Manufacturer's site (de)
Minimum order
7
Minimum order
7

Colour

Colour
Grey

Material

Material
Other

Cable + Connector Features

Max. temperature
105 °C
Min. temperature
-60 °C
mounting type
DIN top-hat rail
Manufacturer Type
PTS 2.5

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 Piece
Scope of delivery
15, 7.5, NS 35, Feed-through terminal block, connection type: push-in connection, cross-section: 0.14 mm² - 4 mm², AWG 26 - 12, width: 5.2 mm, colour: grey, mounting type: NS 35

Product dimensions

Length
8.30 cm
Width
0.52 cm
Height
5.08 cm

30-day right of returnReturn policy
24 Months Warranty (Bring-in)Warranty provisions
