Very good91/100
- Very good performance
- Modern and sophisticated technology
- M.2, USB 3.2 and PCIe 5.0
- Bluetooth and WLAN
- numerous connection options
- clean processing
NZXT N7 Z690
LGA 1700, Intel Z690H, ATXDelivered between Wed, 8.10. and Mon, 1.12.
Product details

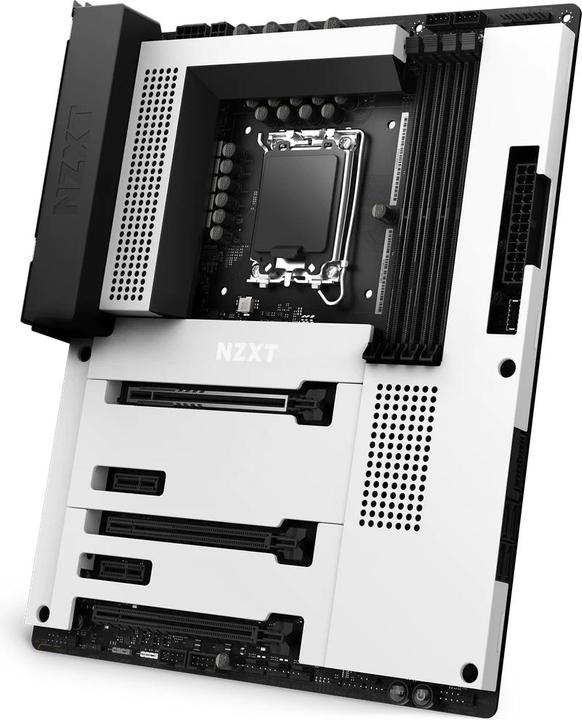

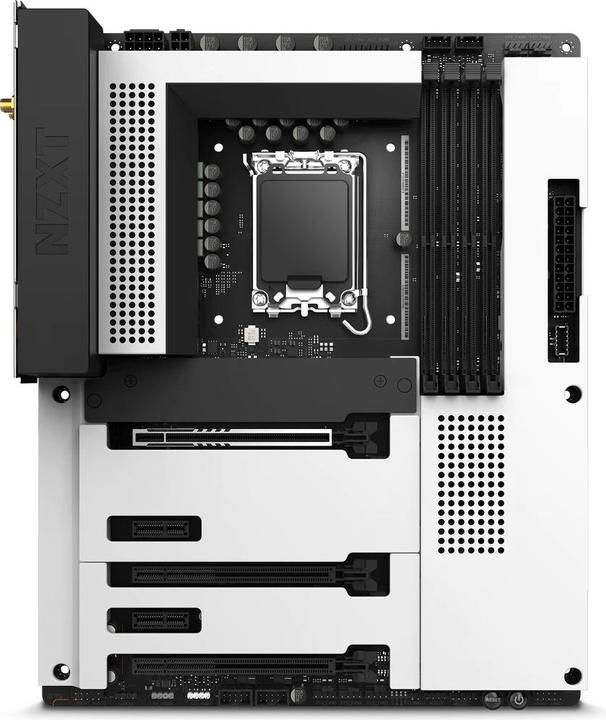

The NZXT N7 Z690 Matte White motherboard is based on the Intel Z690 chipset and supports Intel processors for the 12th generation LGA 1700 socket. It features four DDR4 DIMM slots operating in dual-channel mode for up to 128 GB of RAM. Additional features of the NZXT N7 Z690 Matte White include one PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and two PCIe 3.0 x1 slots. It also offers 8-channel audio, a 2.5 Gigabit LAN interface, four SATA3 ports, three M.2 slots, WiFi 6E, Bluetooth 5.2, and a variety of USB interfaces.
Processor family | Core i3, Core i5, Core i7, Core i9 |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 21375901 |
Manufacturer | NZXT |
Category | Motherboards |
Manufacturer no. | N7-Z69XT-W1 |
Release date | 7.6.2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690H |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10 |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3, Core i5, Core i7, Core i9 |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.0 |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125B |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 5.1 channels |
Audio Connections | Coaxial S/PDIF (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (3x) |
Number of fan connector | 6 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Scope of delivery | M.2 screws, Sata Cables, WiFi antenna |
Length | 101 mm |
Height | 101 mm |
Weight | 1350 g |
Length | 38 cm |
Width | 32 cm |
Height | 9.70 cm |
Weight | 2.29 kg |
