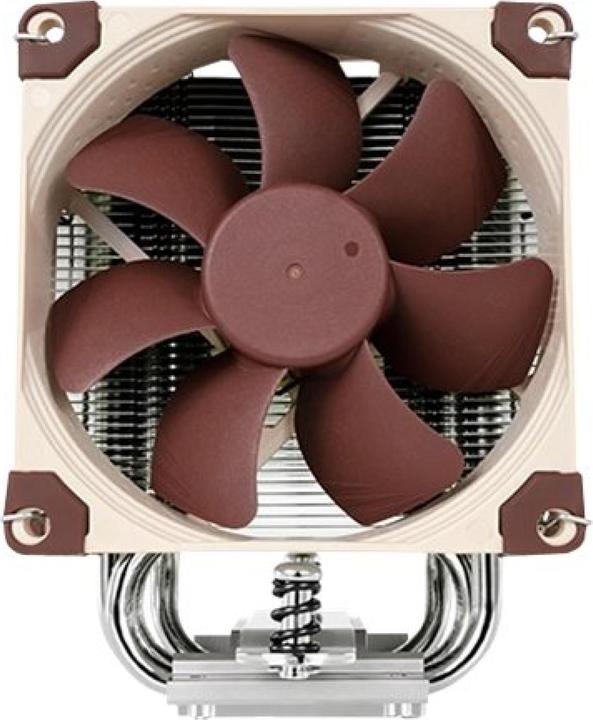

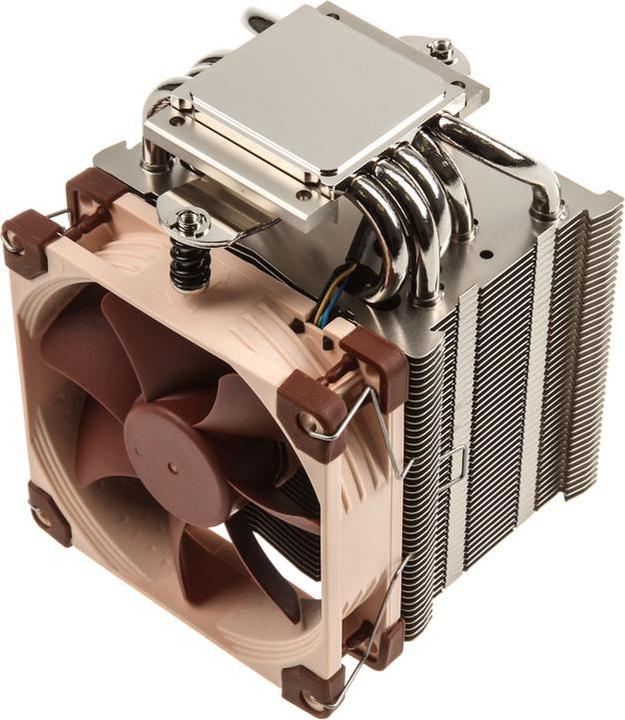

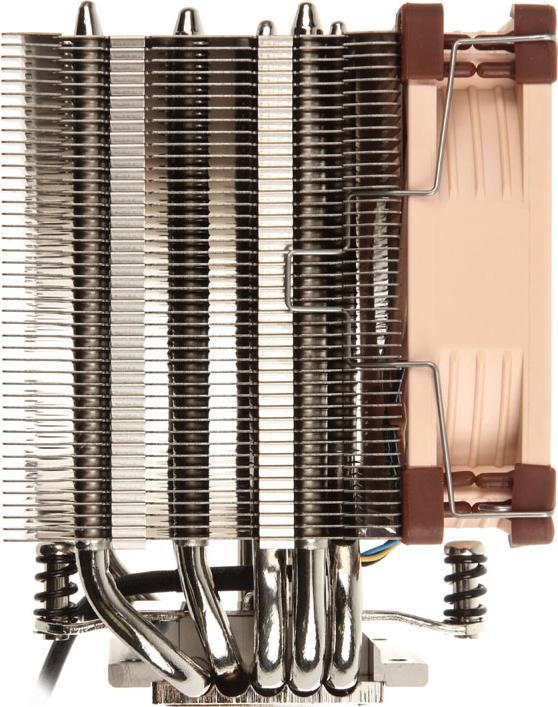

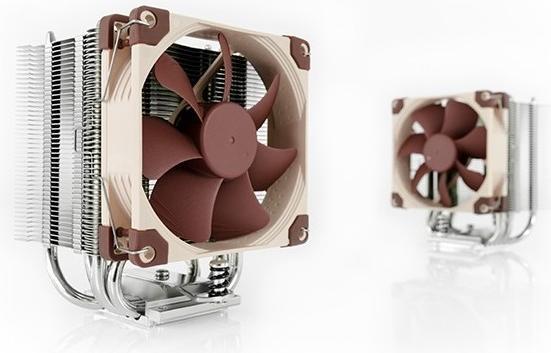

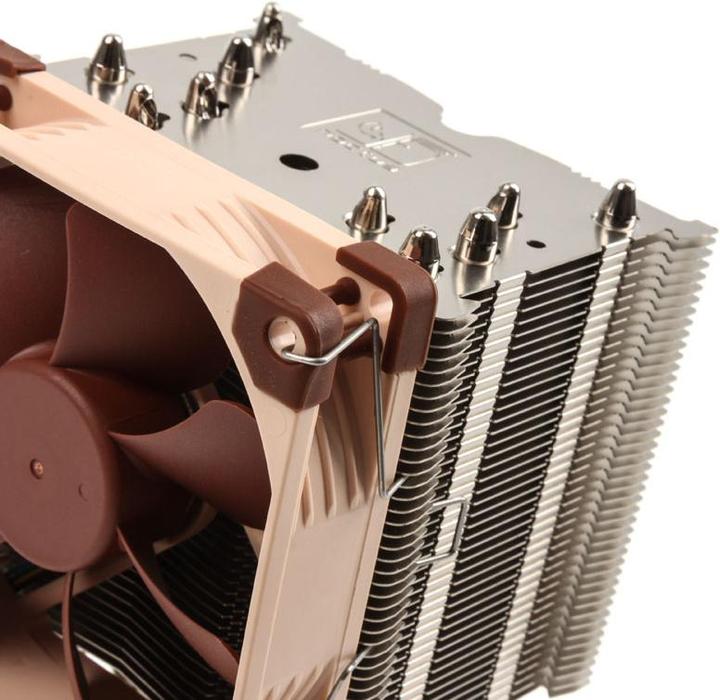

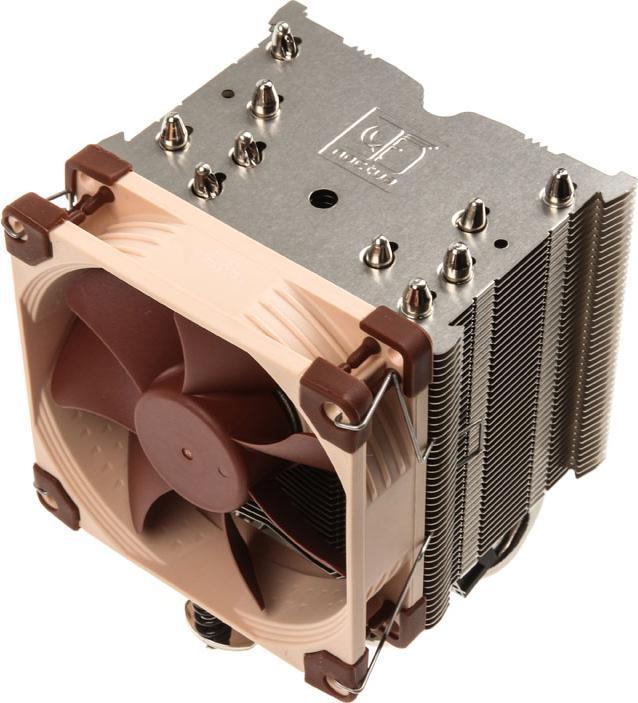

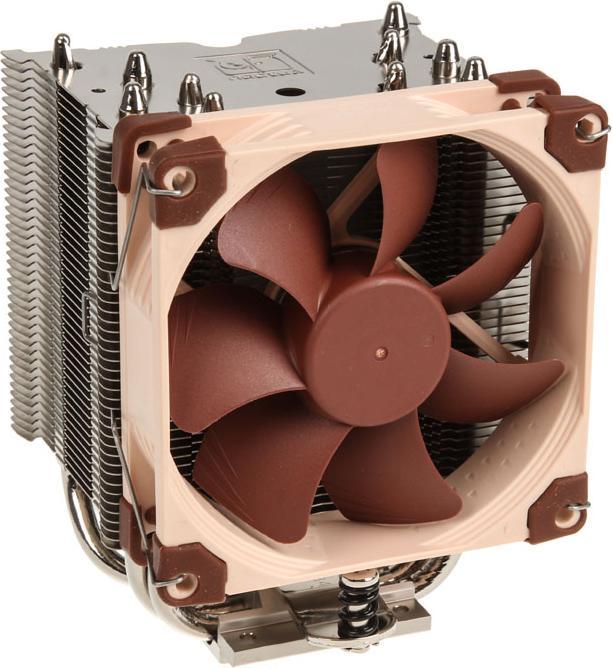

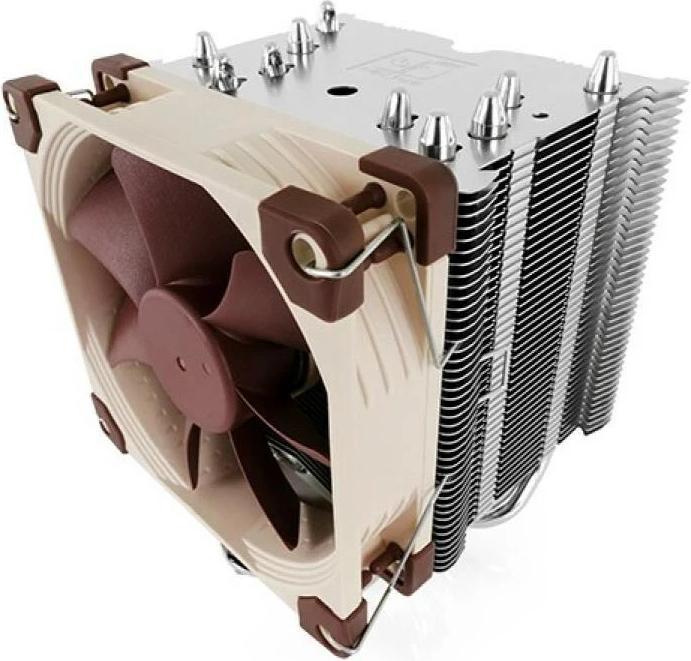

The asymmetrical design with 5 heat pipes allows for both increased cooling performance and better compatibility. With a footprint of 95 x 95 mm, the cooler does not overhang the memory slots or PCIe slots on all Intel and most AMD-based motherboards (including µATX and ITX). Combined with a compact height of 125 mm, this makes the NH-U9S a versatile solution with excellent case, RAM, and PCIe compatibility. The included NF-A9 premium fan ensures outstanding quiet operation, with its speed being fully automatically regulated via PWM. Adding a second NF-A9 fan, available separately, can further enhance cooling performance in a dual-fan setup.
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 1851 |
Height (with fan) | 125 mm |
Diameter | 92 mm |
Number of fans | 1 x |
Airflow | 78.90 m³/h |
power connector | 4-pin PWM |
Item number | 3525690 |
Manufacturer | Noctua |
Category | CPU coolers |
Manufacturer no. | NH-U9S |
Release date | 27.4.2015 |
Sales rank in Category CPU coolers | 10 of 935 |
Colour | Brown |
Exact colour description | Brown, Metallic |
CPU cooler design | Single Tower |
Fan type | Silent |
Socket | AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 1851 |
Cooler mounting | Backplane |
Supported fan sizes | 92mm |

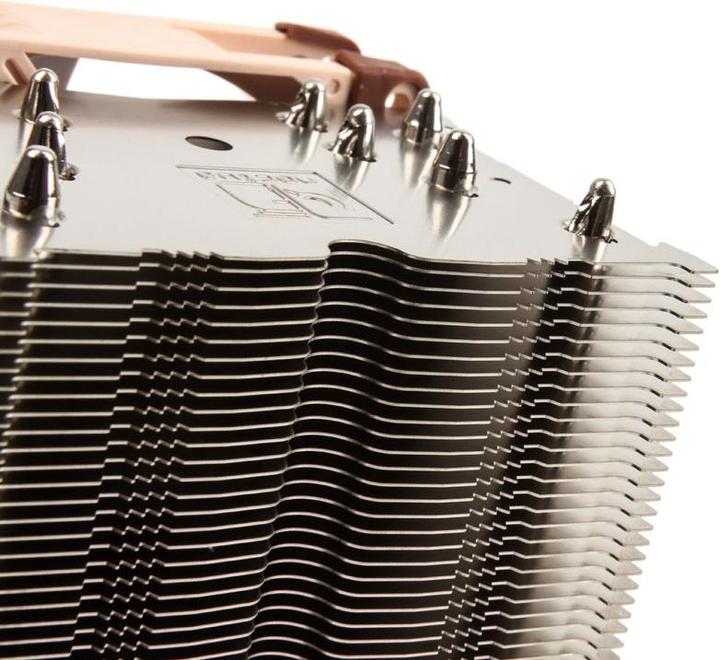

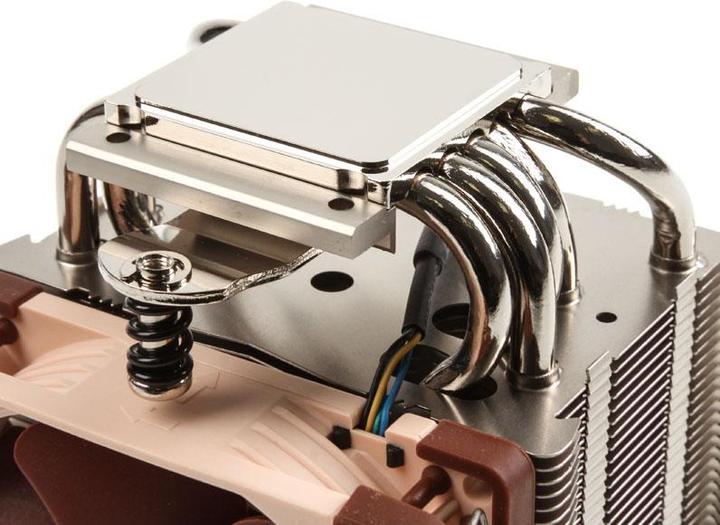

Number of heatpipes | 5 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 125 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 92 mm |
Number of fans | 1 x |
Maximum mountable fan | 2 |
Max. Speed | 2000 RPM |
Airflow | 78.90 m³/h |
Max. noise level | 22.80 dB |
LED colour | without LED |
Fan bearing type | SSO2 |
power connector | 4-pin PWM |
Power consumption | 1.20 W |
Voltage | 12 V |

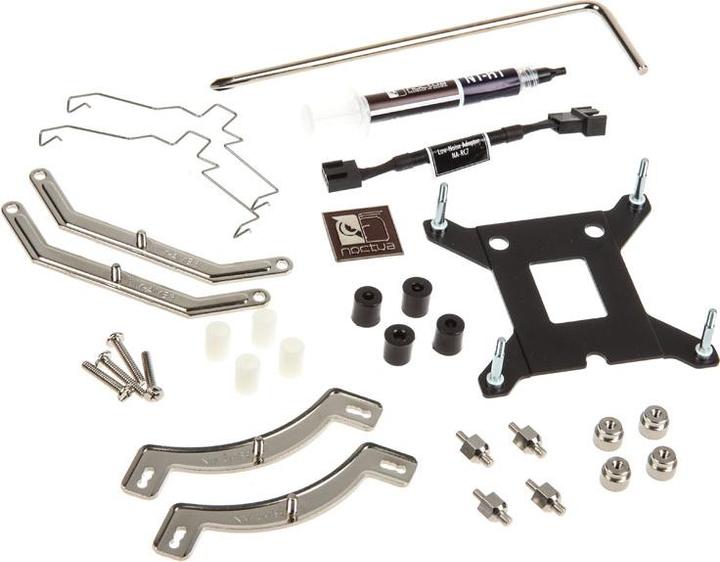

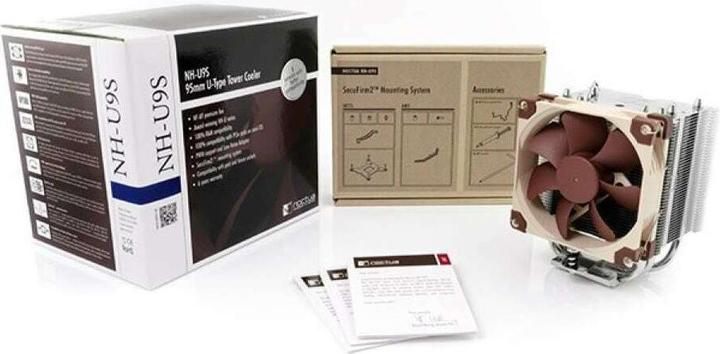

Scope of delivery | Installation material, Manual, Thermal grease |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 95 mm |
Length (with fan) | 95 mm |
Height (with fan) | 125 mm |
Weight | 618 g |
Length | 19.10 cm |
Width | 16.60 cm |
Height | 17.20 cm |
Weight | 1.16 kg |
