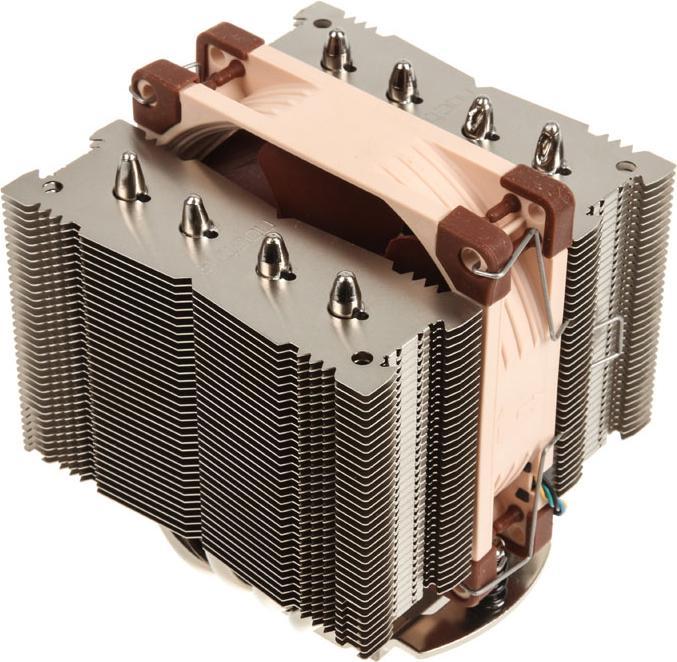

Noctua NH-D9L
110 mmProduct details
The NH-D9L is a premium dual-tower cooler that offers excellent silent cooling performance at an overall height of only 110mm. The comparatively low height (15mm less than classic 9cm coolers like the NH-U9S) not only offers full 3U compatibility, but also makes the NH-D9L an ideal solution for compact HTPC and small form factor cases where the airflow runs parallel to the motherboard. Thanks to its footprint of 95x95mm, the NH-D9L does not hang over the memory banks or PCIe slots on all Intel and most AMD based ITX motherboards. The included NF-A9 premium fan, whose speed can be controlled fully automatically via PWM, ensures excellent running smoothness. With a second, optionally available NF-A9 fan, the cooling performance can be further improved in dual-fan operation.
Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 2011, LGA 2066 |
Height (with fan) | 110 mm |
Diameter | 95 mm |
power connector | 4-pin PWM |
Number of fans | 1 x |
Item number | 12826945 |
Manufacturer | Noctua |
Category | CPU coolers |
Manufacturer no. | NH-D9L |
Release date | 1.12.2023 |
Sales rank in Category CPU coolers | 56 of 886 |
External links |
Colour | Silver |
Exact colour description | Metal |
CPU cooler design | Dual Tower |
Fan type | Tower Cooler |
Socket | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 2011, LGA 2066 |
Supported fan sizes | 92mm |
Number of heatpipes | 4 |
Diameter heat pipe | 6 mm |
Materials radiator core | Aluminium |
Material cooling fins | Aluminium |
Diameter | 95 mm |
Length | 95 mm |
Width | 95 mm |
Height | 95 mm |
Weight | 531 g |
Number of fans | 1 x |
Max. Speed | 2 RPM |
Airflow | 4734 m³/h |
Max. noise level | 22.80 dB |
LED colour | without LED |
power connector | 4-pin PWM |
Power consumption | 1.20 W |
Voltage | 12 V |
Scope of delivery | Low-Noise Adapter (L.N.A.), SecuFirm2 Mounting Kit |
CO₂-Emission | |
Climate contribution |
Width (with fan) | 95 mm |
Length (with fan) | 95 mm |
Height (with fan) | 110 mm |
Weight | 531 g |
Length | 18 cm |
Width | 16 cm |
Height | 18 cm |
Weight | 1.18 kg |
