Niedax NIE HU5050/700 Hanging bar U-profile 50x50x700mm hot-dip galvanised DIN EN ISO 1461

Niedax Hanging Rod HU 5050/700

Manufacturer: Niedax
Designation: Hanging Rod
Type: HU 5050/700
Length: 705 mm
Profile Width: 50 mm
Profile Height: 50 mm
Design: U-Profile
Load Capacity: 4 kN
Suitable for Function Maintenance: yes
Material: Steel
Stainless Steel, Pickled: no
Material Quality: other
Surface Protection: Hot-dip Galvanized
Operating Temperature: -20 to 120 °C
Weight: 2.14566 kg

Additional Details:

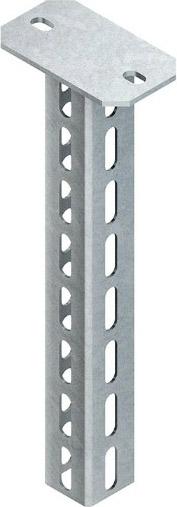

Hanging rod, 3-sided continuously perforated U-profile with welded head plate, System HU 5050, for brackets for single, double, and triple-sided installation. To prevent deformation of the hanging rod profile during the installation of brackets, the hanging rod spacer profile HDS 50.50 F with hexagon screw must be considered for static reasons. When attaching the bracket to the hanging rod profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the hanging rod. For static reasons and to allow for easy placement of the protective cap, the bracket must be mounted at a distance of 50 mm (bracket bottom edge to hanging rod end) above the end of the hanging rod.

For use in function maintenance or for ceilings with fire protection requirements, please observe additional regulations! VDE certified!

For brackets: KTAL, KTAM, KTA, KTAS 100 - 400 (Function Maintenance/KFO), KTA 100 - 600 (Function Maintenance/MLAR)

Dimensions (approximate):
Head Plate L x W x t: 140 x 80 x 5 mm
Mounting Hole: 13 x 20 mm
Center Distance: 100 mm
U-Profile: 50 x 50 x 50 mm
Material Thickness t: 2.5 mm
Three-sided Profile Perforation, single row: 12 x 30 mm
Center Distance: 50 mm
Total Length L: 705 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339858828.
