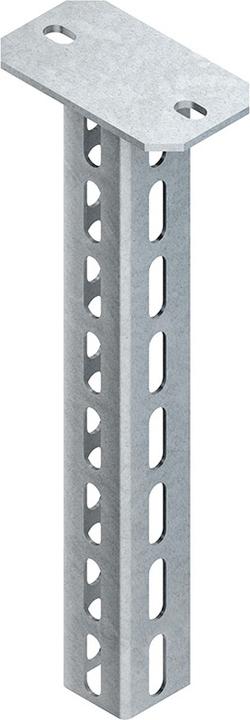

Niedax Hanging handle 600mm HU5050/600 **

Niedax hanging handle HU 5050/600
Manufacturer: Niedax
Designation: Hanging handle
Type: HU 5050/600
Length: 605 mm
Profile width: 50 mm
Profile height: 50 mm
Design: U-profile
Load capacity: 4 kN
Suitable for functional maintenance: Yes
Material: Steel
Stainless steel, pickled: No
Material grade: Other
Surface protection: Hot-dip galvanised
Weight: 1.90271 kg

Further details:
This hanging handle features a three-sided continuously perforated U-profile with a welded-on top plate, designed for outriggers for one-, two-, and three-sided installation. It helps prevent deformation of the suspended support profile during installation. For static reasons, the suspended support spacer profile HDS 50.50 F with hexagon head screw should be considered. If the bracket is attached to the suspended support profile on one side, it is preferable to align the closed side of the bracket with the profile web of the suspended support. To enable the protective cap to be fitted without issues, the bracket must be mounted at a distance of 50 mm (lower edge of bracket to end of hanger post) above the end of the hanger post.

For use in functional maintenance or for suspended ceilings with fire protection requirements, please observe additional regulations. This product is VDE certified.

Dimensions (approx.):
Top plate L x W x d: 140 x 80 x 5 mm
Fixing holes: 13 x 20 mm
Central spacing: 100 mm
U-profile: 50 x 50 x 50 mm
Material thickness t: 2.5 mm
Three-sided profile perforation, single row: 12 x 30 mm
Central spacing: 50 mm
Total length L: 605 mm
Material: Steel, hot-dip galvanised according to DIN EN ISO 1461
EAN: 4013339858804.
