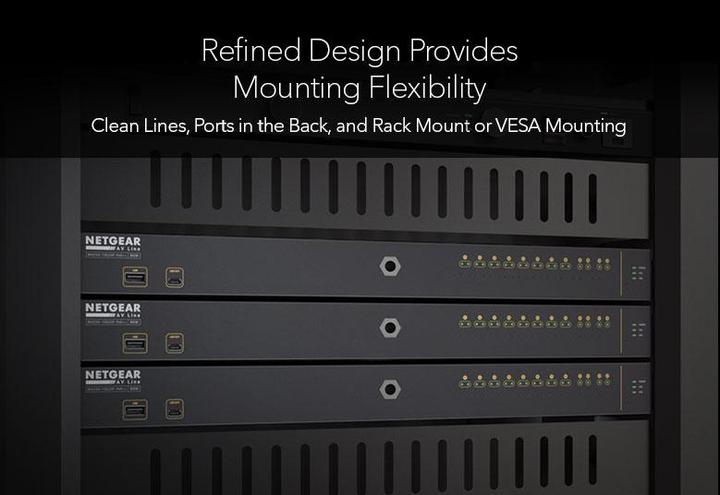

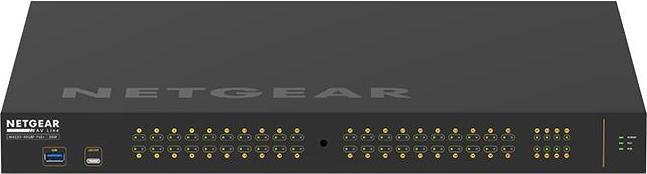

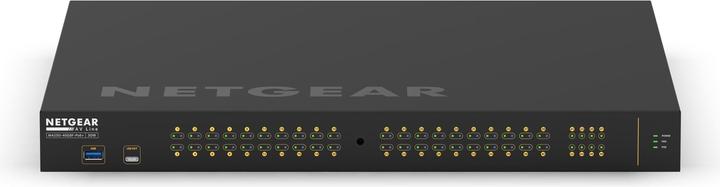

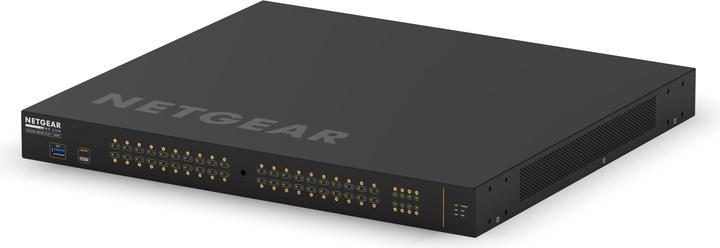

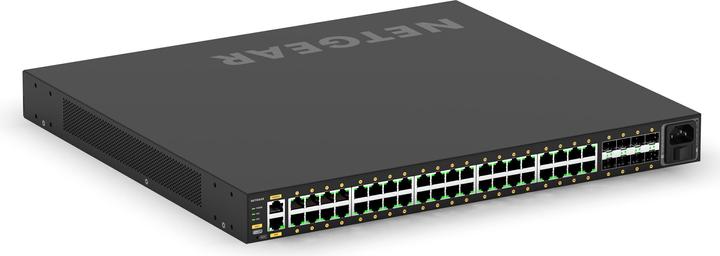

Switching for 1G AV over IP with PoE+, Ultra90 PoE++, and rear-facing ports for clean integration into AV racks. M4250 switches are preconfigured for standard audio and video signals. For more specific requirements, an AV user interface allows customization with port-based profiles. For audio, Dante, Q-SYS, and AES67 profiles are available, as well as an AVB profile for which an AVB license is sold separately. For video, the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, etc., as well as Audio/Video/Control Mixed Profiles. When multiple switches are present, NETGEAR IGMP Plus provides automation to easily connect them together.
Max. port speed | 96000 Mbit/s |

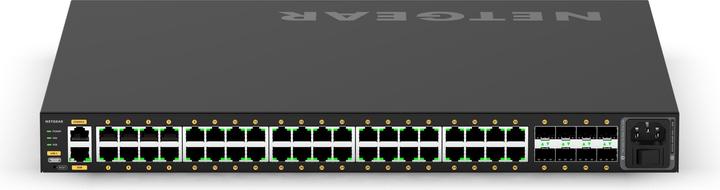

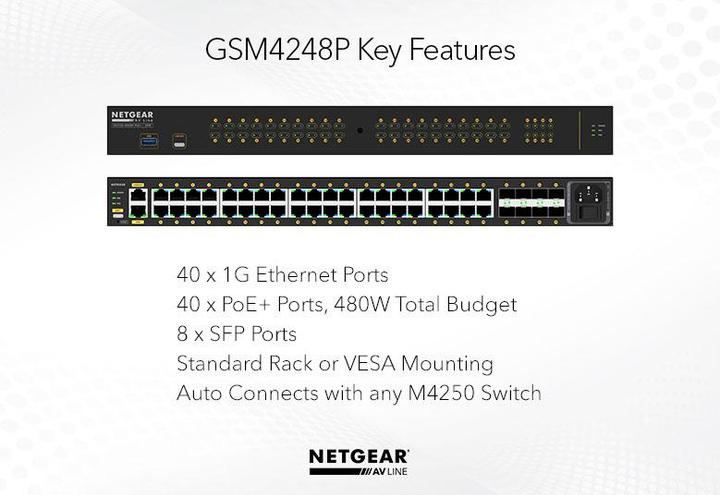

Network connections | RJ45 (40x), SFP (8x) |
Switchtype | Desktop switch, PoE Switch, Rack Switch |
Number of PoE ports | 40 ports |
Management | Fully managed |
Switch functions | Link Aggregation, PoE, Quality of Service (QoS) |
Item number | 14948861 |
Manufacturer | Netgear |
Category | Network switches |
Manufacturer no. | GSM4248P-100EUS |
Release date | 1.3.2021 |
Colour | Black |
Exact colour description | Black |
Switchtype | Desktop switch, PoE Switch, Rack Switch |
Rack Unit | 1U |
Number of ports | 48 ports |
Number of PoE ports | 40 ports |
PoE Standard | 802.3at (PoE+) |
PoE budget | 480 W |
Management | Fully managed |
Switch functions | Link Aggregation, PoE, Quality of Service (QoS) |
switching layer | Layer 2, Layer 3, Layer 4 |
Switching capacity | 96 Gbit/s |
VLAN type | Dynamic VLAN, Port based VLAN, Static VLAN, Tagged VLAN |
Max. Number of VLANs | 4093 x |
MAC adress table size | 16000 |
IGMP Snooping | V2 |
Manufacturer Type | GSM4248P-100EUS |
Network connections | RJ45 (40x), SFP (8x) |
Max. port speed | 96000 Mbit/s |
Max. port speed RJ45 | 1000 Mbit/s |
Max. Port Speed Fiber | 1 Gbit/s |
Max. Port speed | 1000 Mbps / 1 Gbps |
Application range | Business |
Network operation | Power supply internal, Powered device |
Power consumption | 401 W |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x console cable, 1 x USB-C to USB-A cable, Rack mounting kit |
Length | 40 cm |
Width | 44 cm |
Height | 4.32 cm |
Weight | 5850 g |
Length | 54 cm |
Width | 46.50 cm |
Height | 12.50 cm |
Weight | 8.28 kg |
