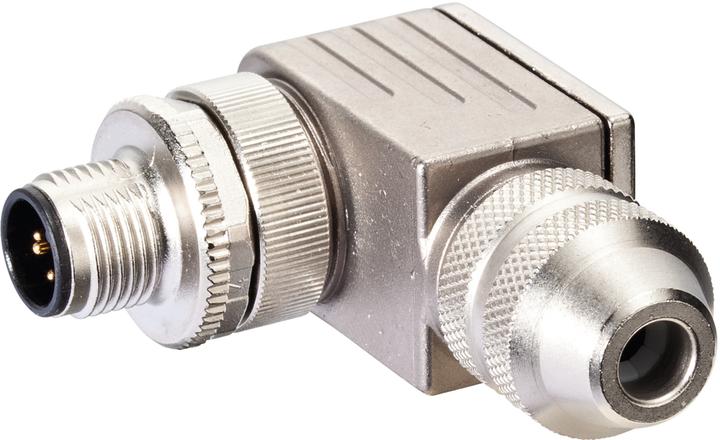

Murr Elektronik M12 St. D-cod. gew. self. Screw terminal shielded 6...8 mm

Ratings
BrandMore from Murr Elektronik
Delivered between Thu, 26.11. and Thu, 10.12.
1 item ordered
Free shipping starting at 50.–

Show all

Product details

Murrelektronik M12 Screw Terminal 7000-14581-0000000

Manufacturer: Murrelektronik
Designation: M12 Screw Terminal
Type: 7000-14581-0000000
Contact Design: Pin
Connector Diameter: 20 mm
Thread Size (metric): 12
Number of Control Contacts: 4
For Cable Outer Diameter: 6 - 8 mm
Housing Design: Angled
Rated Current In: 4 A
Rated Voltage: 250 V
Overvoltage Category: III
Pollution Degree: 3
Electrical Connection Type: Screw Connection
Contact Coating Material: Gold
Housing Material: Brass
Housing Coating: Chrome Plated
Material of the Thread Ring: Zinc Die-Cast
Locking Type: Screw Lock
Flammability Class of Insulating Material according to UL 94: Other
With Protective Earth: No
Protection Class (IP), mounted: IP67
Min. Number of Plug Cycles: 100
Shielded: Yes
With Status Indicator: No

Murrelektronik M12 Screw Terminal 7000-14581-0000000: additional details
M12 90° D-coded screw terminal connection 4-pole, max. 0.75 mm², 6 - 8 mm, shielded
This product is intended for commercial use only.
EAN: 4048879282895.

Key specifications

Cable + connector type
Plug connectors
Plug type
M12

General information

Item number
21056965
Manufacturer
Murr Elektronik
Category
Cables + Plugs
Manufacturer No.
7000-14581-0000000
Release date
3.6.2022

Material

Material group
Metal
Material
Brass

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
M12
Compatible hardware
Various
Temperature
-40 - 85 °C
Max. temperature
85 °C
Min. temperature
-40 °C
Connectors Design
Angled, Flat
Number of cores
4x

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
0.16 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
1 pc.

30-day right of return
24 Months Warranty (Bring-in)
