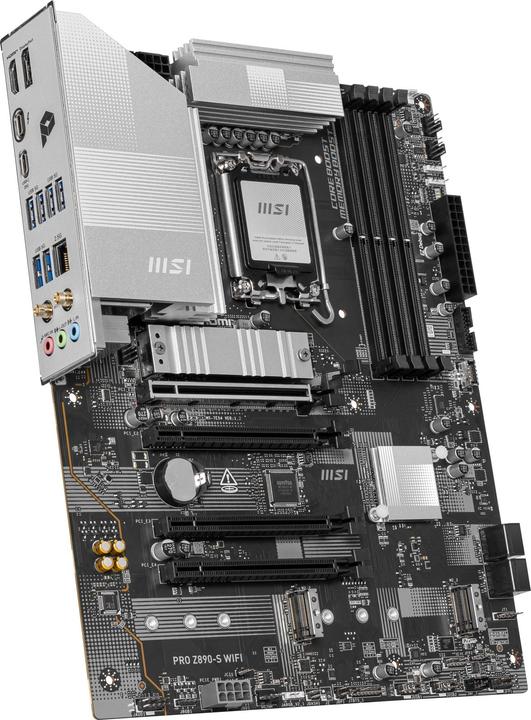

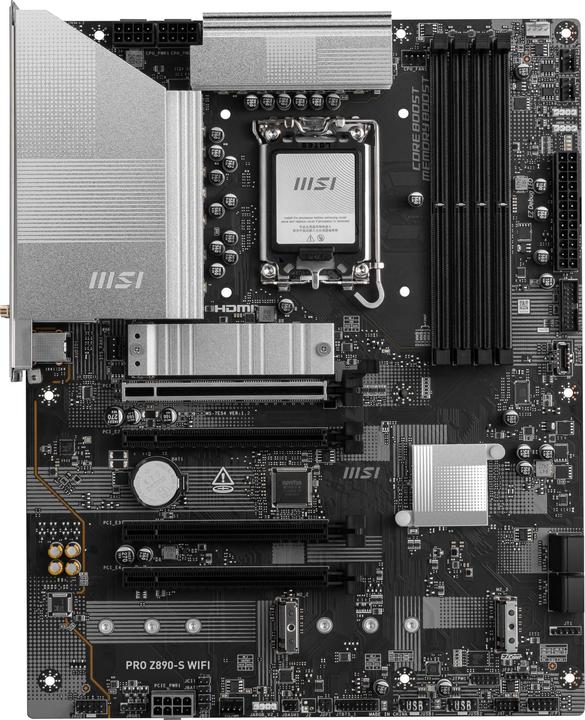

MSI PRO Z890-S WIFI

LGA 1851, Intel Z890, ATX
1Ratings
BrandMore from MSI
Delivered between 14.1.2026 and 21.1.2026
9 pieces in stock at supplier
free shipping

Product details

PRO Z890-S WIFI offers a sleek design with a harmonious silver colour scheme that perfectly matches both white and black PC builds. It is equipped with many MSI exclusive functions, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2 and Supplemental PCIe Power, ready for Intel Core Ultra processors.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Trusted Platform Module
Internal connection options
M.2 PCIe (3x), S-ATA III (4x)
Number of memory modules (RAM)
4x
Item number
49930556

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7E54-001R
Release date
24.10.2024

Motherboard properties

Form factor
ATX
Socket
LGA 1851
Chipset
Intel Z890
Mainboard features
Trusted Platform Module
Operating system compatibility
Windows
BIOS type
Ami
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 7 / 802.11be

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
8600 MHz
Supported memory speed
4800 MHz, 6400 MHz, 8600 MHz
Transfer rate
8000 MT/s
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm Out (5x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 PCIe (3x), S-ATA III (4x)
Expansion slot
PCI Express x16 (4x)
PCI express version (max.)
5
Number of fan connector
5

Further connections

USB ports
Thunderbolt 4, USB-A
Exact USB ports
Thunderbolt 4 (1x), USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 1 (6x), USB-A 3.2 Gen 2 (1x)

Origin

Country of origin
China, Germany, Taiwan

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 WLAN antennas, 2 x Serial ATA cable, 3 x EZ M.2 clip 2

Product dimensions

Length
304.80 mm
Width
243.84 mm
Height
304.80 mm
Weight
1700 g

Package dimensions

Length
34.70 cm
Width
27.40 cm
Height
7.80 cm
Weight
1.64 kg
