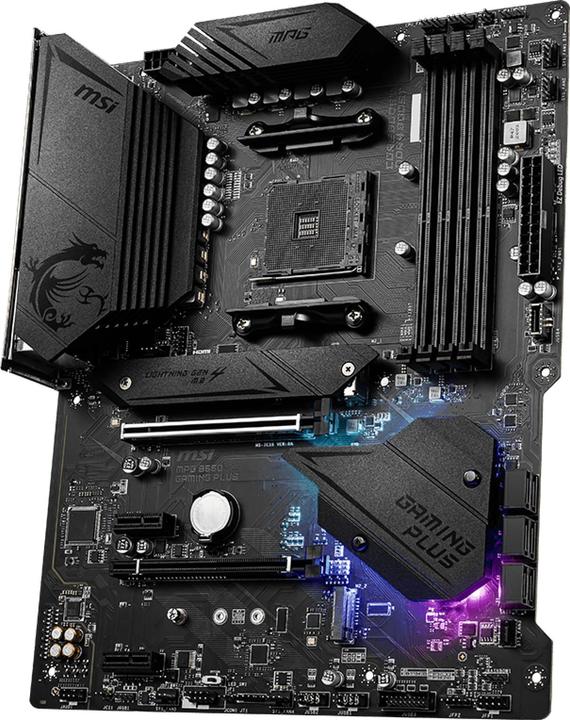

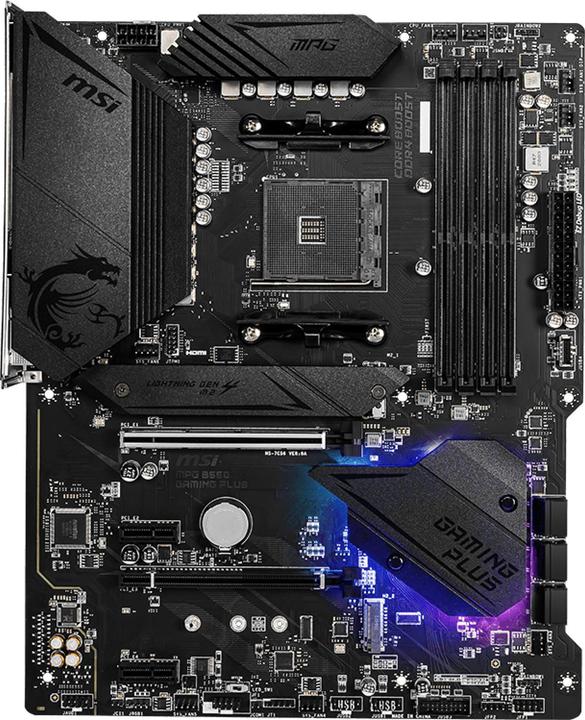

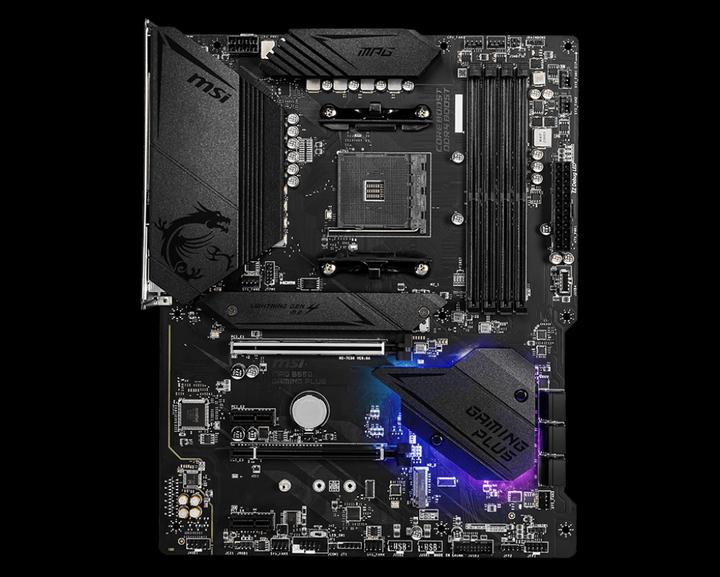

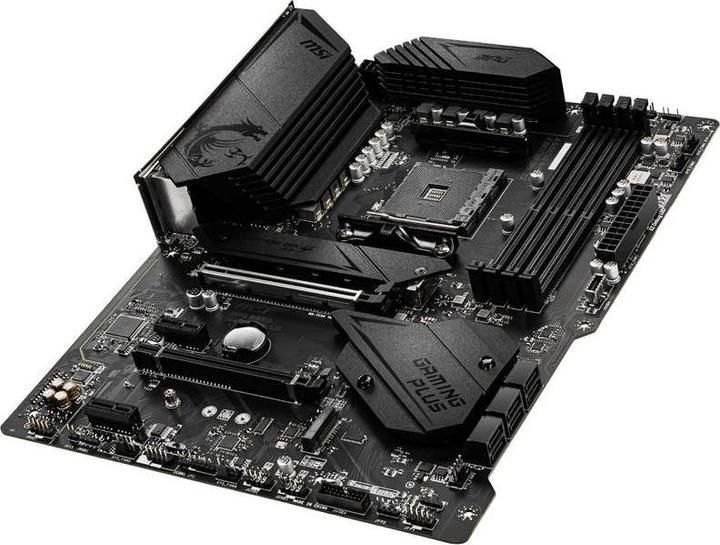

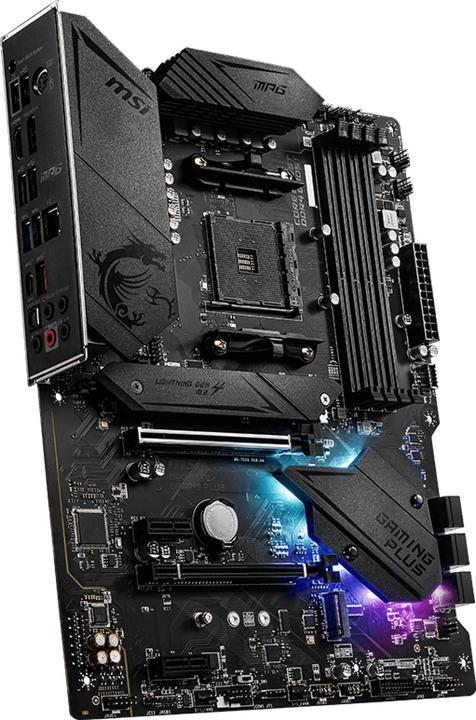

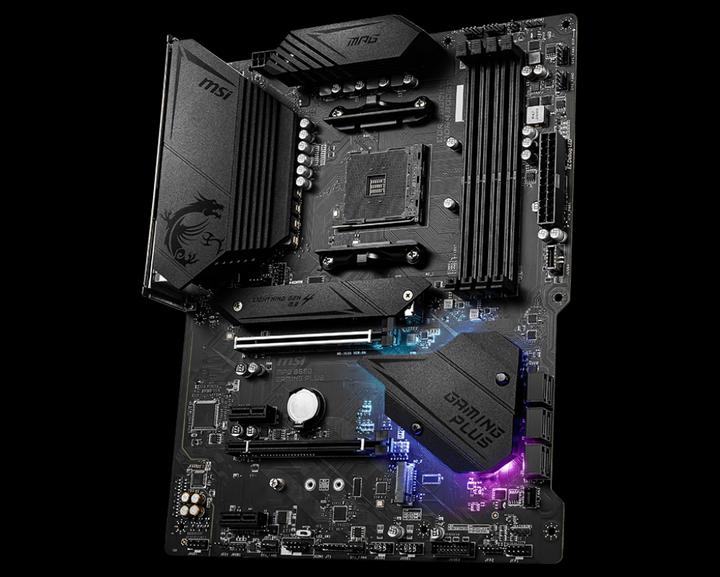

The MPG series allows for enhanced RGB control and synchronization. Experiment with personalizing the LED strip on the front. With the MPG series, you can turn your equipment into an eye-catcher.
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 SATA (1x), S-ATA III (6x) |
Mainboard features | Clear CMOS Button, RGB header |
Item number | 13347401 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7C56-003R |
Release date | 5.6.2020 |
Sales rank in Category Motherboards | 16 of 1018 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B550 |
Mainboard features | Clear CMOS Button, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-1866, DDR4-2133, DDR4-2400, DDR4-2667, DDR4-2800, DDR4-2933, DDR4-3000, DDR4-3066, DDR4-3200 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 1866 MHz, 2133 MHz, 2400 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Transfer rate | 3.20 MT/s |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

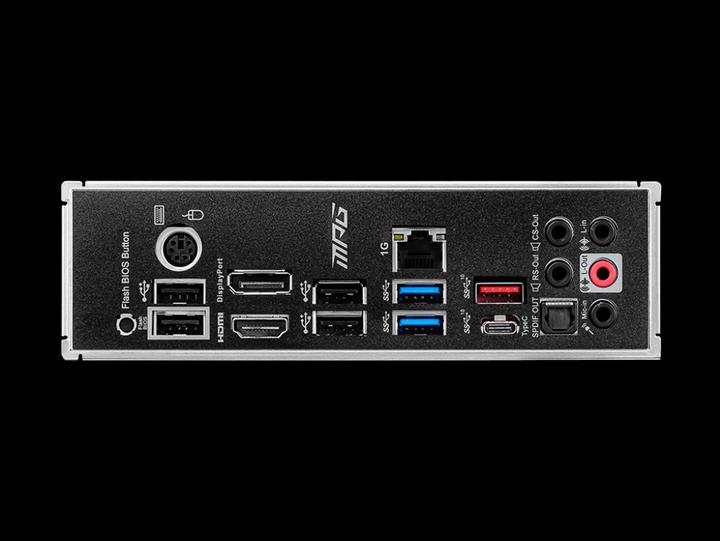

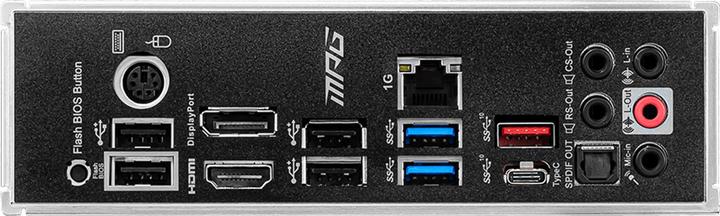

Video connections | DisplayPort (1x), HDMI (1x) |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Digital Audio Out (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 SATA (1x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 6 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (1x), USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable |
Length | 244 mm |
Width | 305 mm |
Height | 65 mm |
Weight | 1000 g |
Length | 35 cm |
Width | 28 cm |
Height | 9 cm |
Weight | 1.72 kg |
