MSI MEG Z590I UNIFY
LGA 1200, Intel Z590, Mini-ITXProduct details

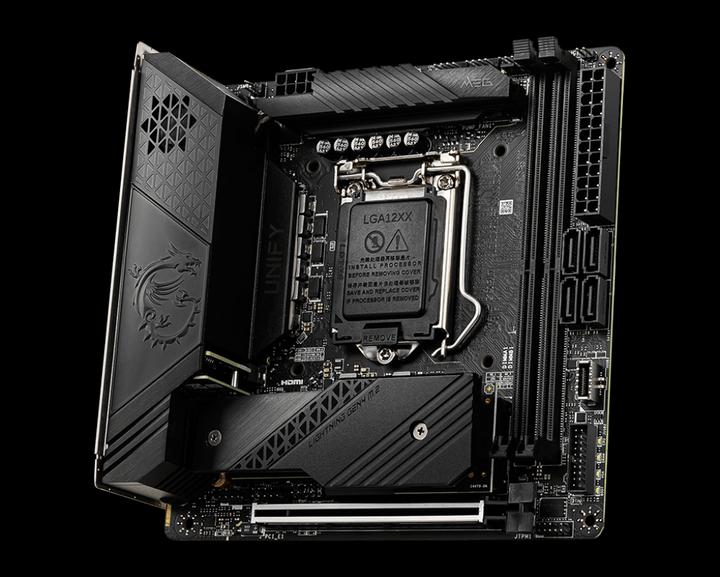

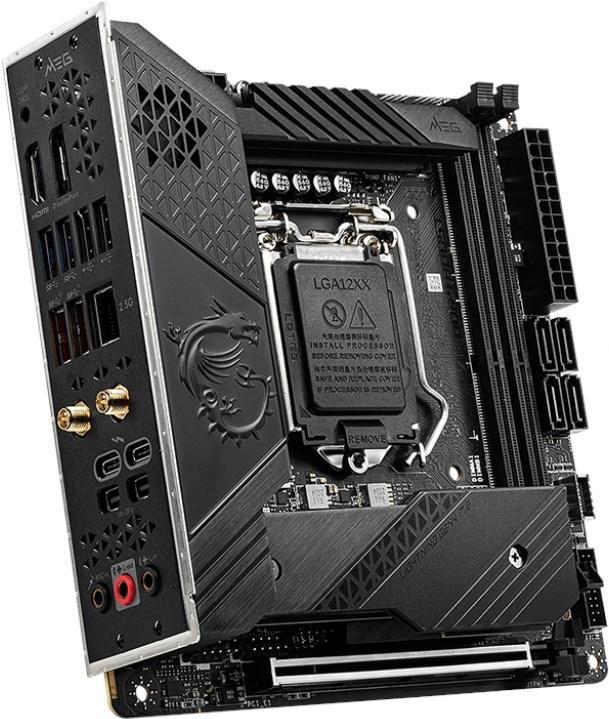

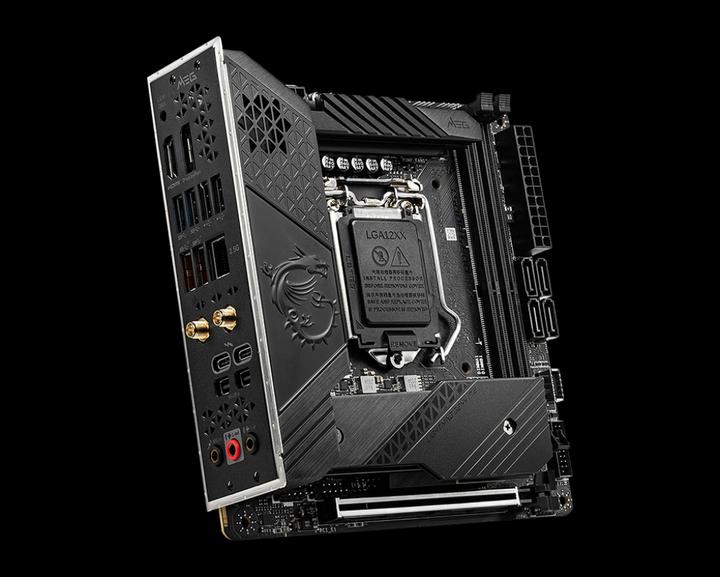

The MSI MEG Z590I UNIFY is a powerful Mini-ITX motherboard designed for the latest 10th generation Intel processors. With the LGA 1200 socket, it supports a wide range of processors, including Intel® Core™ i3, i5, i7, and i9, as well as Celeron and Pentium models. The motherboard offers a maximum RAM capacity of 64 GB and supports DDR4-SDRAM, making it ideal for demanding applications and gaming. Support for M.2 and SATA III storage drives allows for flexible and fast storage solutions, while RAID functionality provides additional data security. With a maximum resolution of 3840 x 2160 pixels and various connectivity options, including HDMI and USB-C, this motherboard is well-equipped to meet modern requirements. The integrated 2.5 Gigabit LAN connection, along with Wi-Fi and Bluetooth, ensures a reliable network connection.
- Supports Intel® 10th generation processors with LGA 1200 socket
- Maximum RAM capacity of 64 GB with DDR4-SDRAM
- Flexible storage options with M.2 and SATA III interfaces
- Integrated 2.5 Gigabit LAN, Wi-Fi, and Bluetooth for enhanced connectivity
- HDMI and USB-C ports for versatile video and data transfer.
Processor family | Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 SATA (2x), S-ATA III (4x) |
Wireless transmission | Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 14733313 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D05-001R |
Release date | 18.1.2021 |
Form factor | Mini-ITX |
Socket | LGA 1200 |
Chipset | Intel Z590 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 5600 MHz |
Supported memory speed | 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

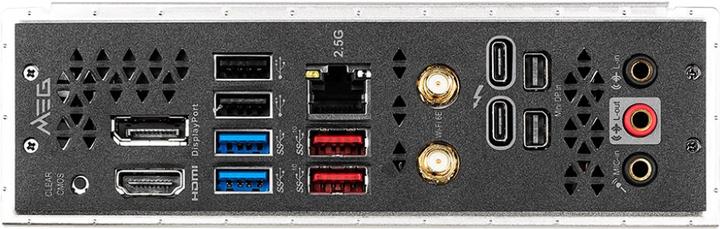

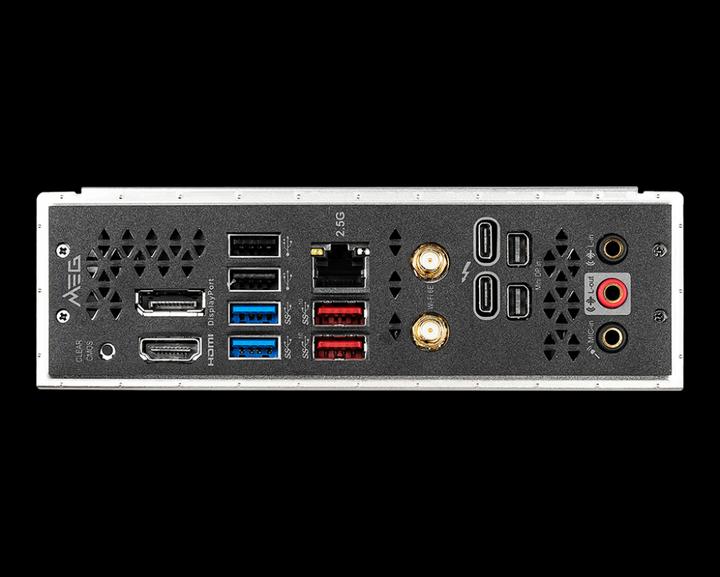

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Ethernet controller | Intel I225-V |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220P |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | M.2 SATA (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 170 mm |
Width | 170 mm |
Height | 170 mm |
Length | 23 cm |
Width | 19.50 cm |
Height | 8.50 cm |
Weight | 1.29 kg |
